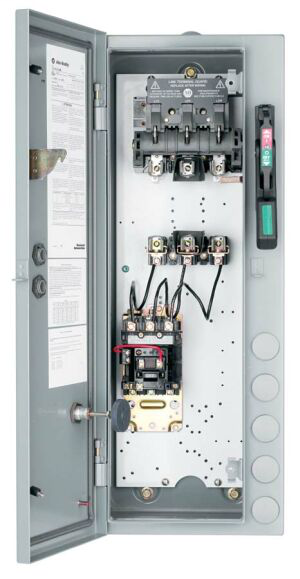

A-B 512-FFB-A2N-6P-28R NEMA Combina

Features

• Includes metal enclosure with ratings of NEMA 1, 3R, 4/12, 4X
• Rated for indoor and outdoor applications
• Offers rugged design
• Offers wide-range universal AC/DC electronic coils
• Offers starters in stainless steel and cast enclosures rated for gas and dust hazardous locations
• Includes smaller enclosure in select frame sizes
• Offers snap-together wiring which provides faster and easier wiring of components in the enclosure
• Offers IP-20 finger-safe terminals
• Includes NEMA sizes 0...6
• Field serviceable
• Provides short circuit protection up to 100 kA with fuses and 65kA at 480V with circuit breaker
• Includes reduced power consumption

Specifications

• Size: NEMA 5
• Continuous Ampere Rating: 270 A

Assembly

• Factory or User Assembled?: Factory Assembled

Motor Data

• Line Voltage: 460V 60Hz

Starter Data

• NEMA Size: NEMA 5
• Enclosure: Type 3R/4/12 - Enclosure Code "F"
• Control Voltage: 120V 60Hz

Disconnect Data

• Disconnect Type: Fusible
• Fuse Clips: 400A Class R

Options

• Overload Relay: E1 Plus Solid State
• Full Load Amps: 60...300
• Factory Installed Modifications: Transformer, w/2 Prim & 1 Sec Fuse

Important Information

• Enclosure Size [length x width x depth]: 56 x 30 x 14 in.
• Continuous VA (Transformer Rating): 350
