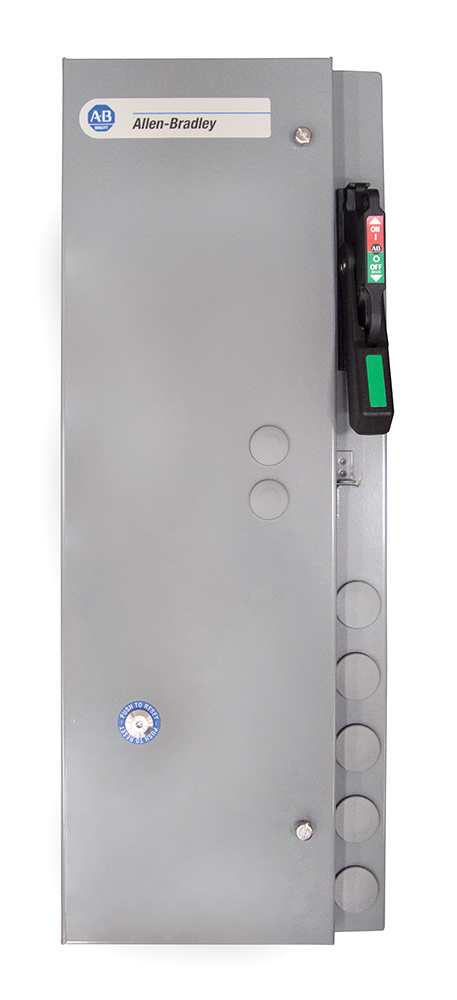

A-B 513-BABD-41 NEMA Size 1 COMB St
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,166.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 513-BABD-41
North Coast Part # 10542

Specifications

  • Size: NEMA 1
  • Continuous Ampere Rating: 27 A

Assembly

  • Factory or User Assembled?: Factory Assembled

Motor Data

  • Line Voltage: 460V 60Hz

Starter Data

  • Horsepower: 10 HP
  • NEMA Size: NEMA 1
  • Enclosure: Type 1 - Enclosure Code "A"
  • Control Voltage: 120V 60Hz

Circuit Breaker Data

  • Horsepower Code: 10 HP (Motor Protection)
  • Circuit Breaker Type: Instantaneous Trip, Standard

Options

  • Overload Relay: Eutectic Alloy
  • Full Load Amps: Eutectic Overload

Important Information

  • Enclosure Size [length x width x depth]: 27 x 10 x 8 in.

Categories

Overview

UPC 78118026017
Item Long Description COMB Starter Circuit Breaker,Size 1,120V 60 Hz,NEMA 1 General Purpose,10HP (Mtr Prt), 125A (Fdr Prt),Instantaneous Trip - Standard,No options,480/110/120 VAC - 50/60Hz (BD),Eutectic Overload,No Fuse Cover,No Auxililiary Contacts,Standard Capacity,Ungrounded Transformer,Incandescent,Incandescent,No Pilot Light Lens - Pos. 3,No Pilot Light Lens - Pos. 3,No Pilot Light Lens - Pos. 4,No Pilot Light Lens - Pos. 4,No Pilot Light Lens - Pos. 5,No Pilot Light Lens - Pos. 5
GTiN 00781180260179
Size Size 1
Type COMB Starter Circuit Breaker
Horsepower 10 hp
Control Voltage 120 V
Family Brand Name Allen Bradley
NEMA 1
Circuit Breaker Type Instantaneous Trip - Standard
Number of Phases 3 Phase
Enclosure Type NEMA 1 General Purpose
Power Rating 10HP (Mtr Prt), 125A (Fdr Prt)
Amperage 27 Amp
Sub Brand NEMA
Voltage 460 Volt
