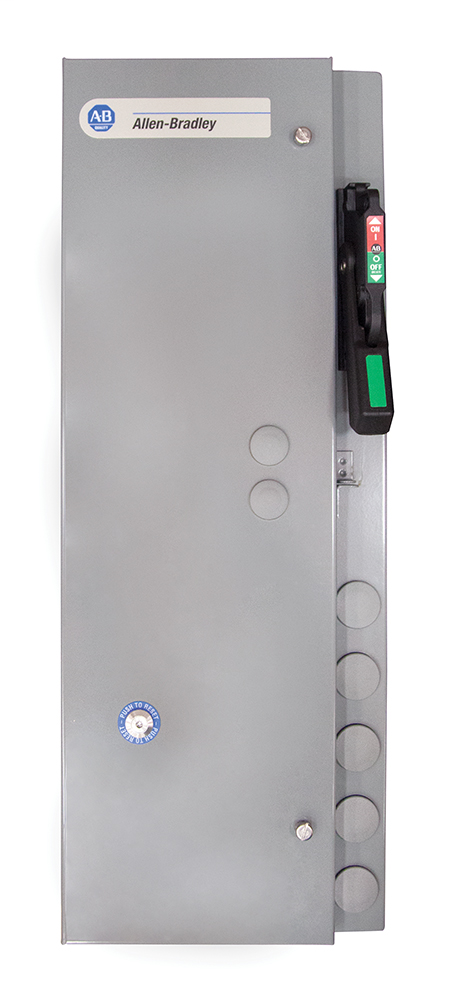

A-B 513-CCBD-44 NEMA Size 2 COMB St
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5,535.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 513-CCBD-44
North Coast Part # 931766

Specifications

  • Size: NEMA 2
  • Continuous Ampere Rating: 45 A

Assembly

  • Factory or User Assembled?: Factory Assembled

Motor Data

  • Line Voltage: 460V 60Hz

Starter Data

  • NEMA Size: NEMA 2
  • Enclosure: Type 4/4X - Enclosure Code "C"
  • Control Voltage: 120V 60Hz

Circuit Breaker Data

  • Horsepower Code: 25 HP (Motor Protection)
  • Circuit Breaker Type: Instantaneous Trip, Standard

Options

  • Overload Relay: Eutectic Alloy
  • Full Load Amps: Eutectic Overload

Important Information

  • Enclosure Size [length x width x depth]: 27 x 10 x 8 in.

Overview

UPC 66246824007
Item Long Description COMB Starter Circuit Breaker,Size 2,120V 60 Hz,NEMA 4/4X Stainless Steel,25HP (Mtr Prt), 200A (Fdr Prt),Instantaneous Trip - Standard,No options,480/110/120 VAC - 50/60Hz (BD),Eutectic Overload,No Fuse Cover,No Auxililiary Contacts,Standard Capacity,Ungrounded Transformer,Incandescent,Incandescent,No Pilot Light Lens - Pos. 3,No Pilot Light Lens - Pos. 3,No Pilot Light Lens - Pos. 4,No Pilot Light Lens - Pos. 4,No Pilot Light Lens - Pos. 5,No Pilot Light Lens - Pos. 5
GTiN 00662468240079
Size Size 2
Type COMB Starter Circuit Breaker
Horsepower 25 hp
Control Voltage 120 V
Family Brand Name Allen Bradley
NEMA 2
Circuit Breaker Type Instantaneous Trip - Standard
Number of Phases 3 Phase
Enclosure Type NEMA 4/4X Stainless Steel
Power Rating 25HP (Mtr Prt), 200A (Fdr Prt)
Amperage 45 Amp
Sub Brand NEMA
