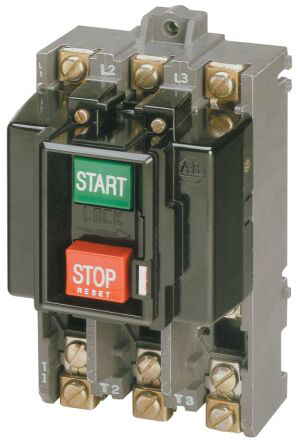

Allen-Bradley 609-AAW 3 Phase Manual Starting Switch Push Button
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 609-AAW
North Coast Part # 161501


  • Locking features
  • Open-type, Type 1, and Type 12 enclosures
  • Contact position indicator
  • Undervoltage protection


  • Phase: 3 Phase
  • Size: NEMA 0
  • Special Features: No Pilot Light Desired

Motor Data

  • Phases: Three Phase

Starting Switch Data

  • NEMA Size: NEMA 0
  • Switch Type: Bulletin 609- Manual Starting Switches
  • Operator Type: Push Button
  • Enclosure Type: NEMA Type 1 General Purpose Enclosure, Surface Mounting
  • Optional Factory Installed Pilot Light: No Pilot Light Desired


GTiN 00781180206153
Size NEMA 0
Type Direct
Operator Type Push Button
Control Voltage 380 - 415 VAC at 50 Hz, 200 - 575 VAC at 60 Hz
Family Brand Name Allen Bradley
NEMA 0,1
Number of Phases 3 Phase
Enclosure Type Door Screw Fastener,External Reset,Painted Metal,Type 1 General Purpose
Blade Dimensions 371 mm W x 104 mm D x 231 mm H
Product UPC 78118020615
Standard CE,CSA,CUL,KC
Nema Size NEMA 0
