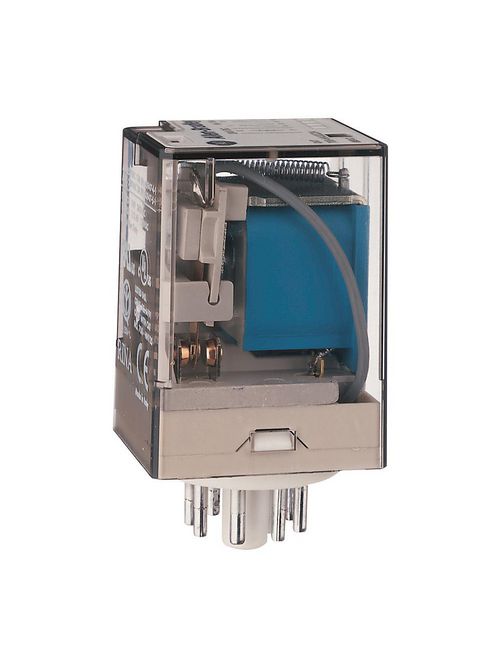

Allen-Bradley 700-HAX2Z01 General Purpose Tube Base Relay
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$45.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 700-HAX2Z01
North Coast Part # 602409

Features

  • Includes 10 A, B300 contact rating
  • Includes DPDT or 3PDT
  • Includes tube base/Octal (8- or 11-pin) terminals
  • Offers electrical schematic on faceplate, clear cover for visual inspection, snap-in marker ability
  • Offers standard ON/OFF flag indicator

Specifications

Control Relay Data

  • Contact Rating: 6 Amp Bifurcated Contact w/Gold Overlay
  • Contact Configuration: DPDT Contact Arrangement
  • Coil Voltage: 125V DC
  • Relay Option: No Additional Options

Categories

Overview

GTiN 00662072056004
Type Tube Base, Double Contact
Coil Voltage 125 V
Family Brand Name Allen Bradley
Contact Configuration DPDT - 2 CO
Contact Rating 6 A
Product UPC 66207205600
Mounting Type Socket
Temperature Rating -40 to 70 C
Contact Material Bifurcated with Gold Overlay
Dielectric Strength 2000 V Pole to Pole, Contact to Coil
Environmental Conditions -40 to 100 C Storage, 2.5 g Vibration, 9 g Shock
Operating Cycles 20000000 AC, 50000000 DC Mechanical, 100000 Electrical
