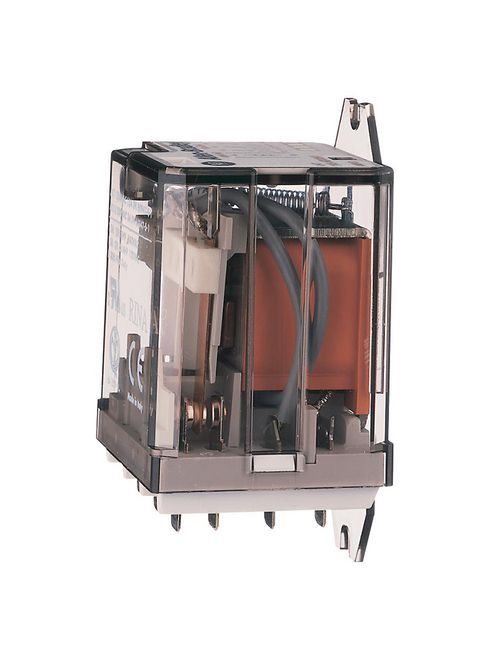

A-B 700-HD32A20 208V 50/60Hz GP Fla
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$41.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 700-HD32A20
North Coast Part # 665334

Features

  • Includes solder terminals (no socket required)
  • Includes blade-style quick connect terminals (0.187 x 0.020)
  • Includes 15 A contact rating
  • Offers flange-mounted and panel-mounted

Specifications

Control Relay Data

  • Contact Rating: 15 Amp Standard Contact
  • Contact Configuration: DPDT Contact Arrangement
  • Coil Voltage: 208V 50/60Hz
  • Relay Option: No Additional Options

Categories

Overview

GTiN 00662073016694
Coil Voltage 208 V
Family Brand Name Allen Bradley
Contact Configuration DPDT - 2 CO
Contact Rating 15 A
Product UPC 66207301669
Type Square Base
Mounting Type Panel, Flange
Temperature Rating -40 to 70 C
Contact Material Silver Cadmium Oxide
Dielectric Strength 2500 V Pole to Pole, 4000 V Contact to Coil
Blade Dimensions 38.2 mm W x 68 mm H
Environmental Conditions -40 to 100 C Storage
Number of Poles 2 Pole
Resistance 50 M?
