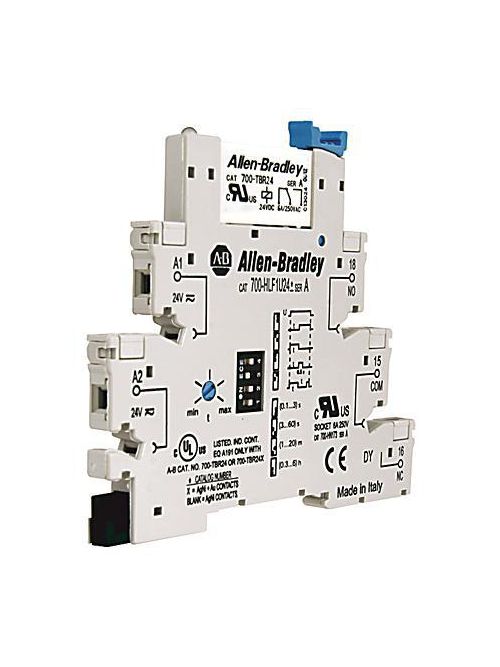

A-B 700-HLT1U12X 12 V AC/DC GP Term
Product image thumbnail 0
Product image thumbnail 1
$32.31/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 700-HLT1U12X
North Coast Part # 1826717

Features

  • Includes screw-type and┬áspring-clamp terminal bases
  • Offers externally replaceable relay modules
  • Provides standard status indicator, reverse polarity protection, and surge protection
  • Includes externally replaceable relay modules
  • Includes relay and socket assembled interface modules for high density interposing or isolation applications
  • Offers leakage current suppression version
  • Provides built-in retainer clip and snap-in marker lever
  • Offers timing range from 0.1 sec...6 hr
  • Includes screw terminal bases
  • Provides four timing functions
  • Includes built-in retainer clip and snap-in marker lever
  • Includes SPDT (relay)
  • Includes standard status indicator, reverse polarity protection and surge protection

Specifications

Relay Output Data

  • Output Relay Type: Electromechanical Relay Output
  • Contact Output: SPDT (1 C/O)
  • Connections: Screw Terminals
  • Build in 2.2mA Leakage Current Suppression Circuit: No
  • Coil Voltage: 12V AC/DC
  • Contact Type: Gold Plated Contacts
  • NOTE: The standard package is 10 pc/box

Overview

UPC 61132078332
Item Long Description 12 V AC/DC GP Terminal Block Relay
GTiN 00611320783322
Type GP Terminal Block Relay
Applications Electromechanical Relay Output
Coil Voltage 12 V
Contact Type Gold Plated Contacts
Family Brand Name Allen Bradley
TC Connection Screw Terminals
Contact Configuration SPDT (1 C/O) 6mm
Connection Type Screw Terminals
