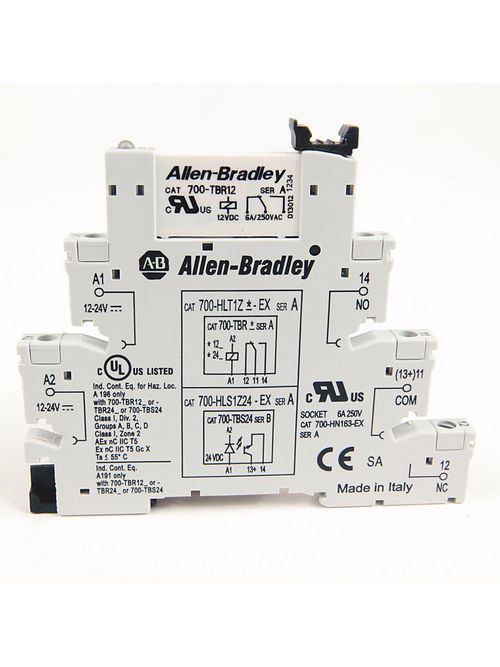

Allen-Bradley 700-HLT1Z24 Electromechanical Solid State Relay
Product image thumbnail 0
Product image thumbnail 1
$24.35/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 700-HLT1Z24
North Coast Part # 78731

Features

  • Includes standard status indicator, reverse polarity protection and surge protection
  • Includes screw-type and┬áspring-clamp terminal bases
  • Offers externally replaceable relay modules
  • Provides four timing functions
  • Offers timing range from 0.1 sec...6 hr
  • Includes screw terminal bases
  • Includes built-in retainer clip and snap-in marker lever
  • Provides built-in retainer clip and snap-in marker lever
  • Offers leakage current suppression version
  • Includes externally replaceable relay modules
  • Includes relay and socket assembled interface modules for high density interposing or isolation applications
  • Provides standard status indicator, reverse polarity protection, and surge protection
  • Includes SPDT (relay)

Specifications

Relay Output Data

  • Output Relay Type: Electromechanical Relay Output
  • Contact Output: SPDT (1 C/O)
  • Connections: Screw Terminals
  • Build in 2.2mA Leakage Current Suppression Circuit: No
  • Coil Voltage: 24V DC
  • Contact Type: Standard Silver Contacts
  • NOTE: The standard package is 10 pc/box

Overview

UPC 61132051713
GTiN 00611320517132
Type Single Contact, Polarized
Applications Electromechanical Relay Output
Coil Voltage 24 V
Contact Type Standard Silver Contacts
Family Brand Name Allen Bradley
TC Connection Screw
Contact Configuration 1 NO
Blade Dimensions 88 mm W x 6.2 mm D x 76 mm H
Voltage 24 VDC
Standard CCC,CE,CUL,KC,MARINE,UL
Connection Type Screw Terminals
