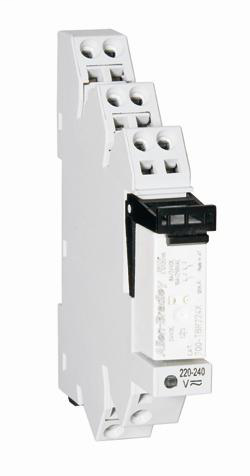

Allen-Bradley 700-HLT22Z24 General Purpose Terminal Block Relay
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 700-HLT22Z24
North Coast Part # 665946


  • Includes SPDT (relay)
  • Includes built-in retainer clip and snap-in marker lever
  • Provides built-in retainer clip and snap-in marker lever
  • Includes screw terminal bases
  • Includes screw-type and┬áspring-clamp terminal bases
  • Includes standard status indicator, reverse polarity protection and surge protection
  • Provides four timing functions
  • Includes relay and socket assembled interface modules for high density interposing or isolation applications
  • Includes externally replaceable relay modules
  • Offers timing range from 0.1 sec...6 hr
  • Offers leakage current suppression version
  • Provides standard status indicator, reverse polarity protection, and surge protection
  • Offers externally replaceable relay modules


Relay Output Data

  • Output Relay Type: Electromechanical Relay Output
  • Contact Output: DPDT (2 C/O)
  • Connections: Spring Clamp
  • Build in 2.2mA Leakage Current Suppression Circuit: No
  • Coil Voltage: 24V DC
  • Contact Type: Standard Silver Contacts
  • NOTE: The standard package is 10 pc/box


UPC 66207428372
GTiN 00662074283729
Type Electromechanical
Applications Electromechanical Relay Output
Coil Voltage 24 V
Contact Type Standard Silver Contacts
Family Brand Name Allen Bradley
Contact Material Standard Silver
TC Connection Spring Clamp
Contact Configuration DPDT (2 C/O) 14 mm
Number of Poles 2 Pole
