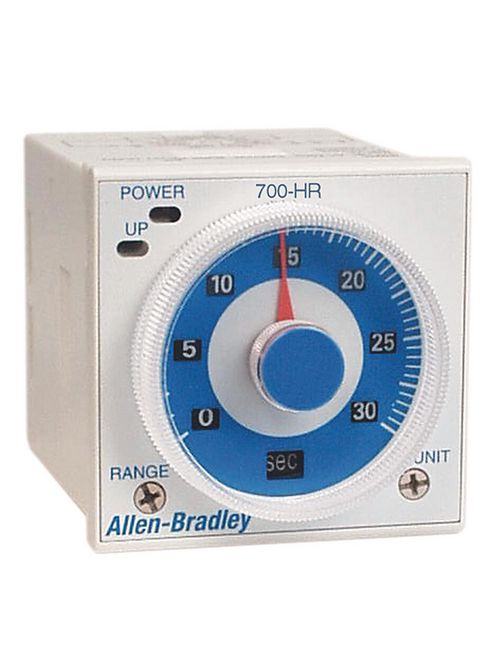

Allen-Bradley 700-HRS42TU24 Tube Base Dial Timing Relay
Product image thumbnail 0
Product image thumbnail 1
$152.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 700-HRS42TU24
North Coast Part # 214965

Features

  • Offers 5 A contact ratings or transistor outputs
  • Offers multi-voltage inputs
  • Includes timing range from 0.05 s…300 hr
  • Includes single- or multi-function options
  • Offered with socket or panel mounting

Specifications

Control Relay Data

  • Type of Timer: Multi-Function, Two Timed Contacts w/ Power Supply Start
  • Timing Mode: Multi-Mode (4 Functions)
  • Contact Configuration: DPDT Timed Contact Arrangement
  • Timing Range: 0.05 seconds to 300 hours
  • Coil Voltage: 24...48V AC 50/60Hz / 12...48V DC

Overview

UPC 61132048026
GTiN 00611320480269
Type Multi-Function, Dial, General Purpose, Tube Base
Mounting Type Panel, Socket
Coil Voltage 24-48 V
Temperature Rating -10 to 55 C
Family Brand Name Allen Bradley
Contact Configuration DPDT
Blade Dimensions 1-57/64 in W x 3-7/32 in D x 1-57/64 in H
Environmental Conditions -25 to 65 C
Contact Rating 15 A at 240 VAC, 5 A at 250/30 VAC/VDC (Resistive)
Number of Poles 2 Pole
Operating Cycles 20000000 Mechanical, 100000 Electrical
Voltage 24-48 VAC at 50/60 Hz, 12-48 VDC
