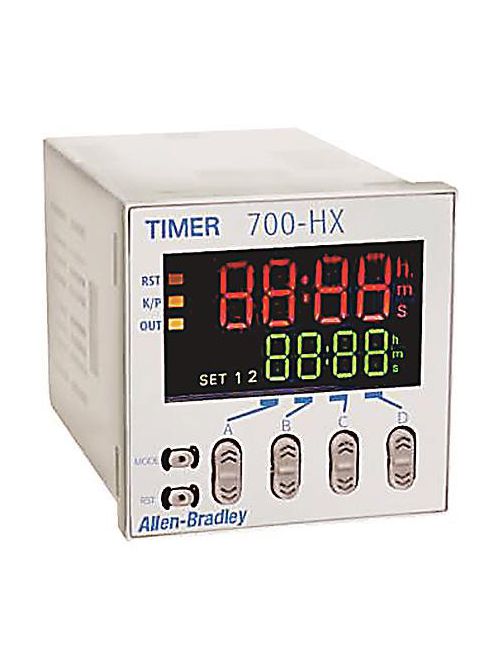

Allen-Bradley 700-HX86SU24 AC/DC Display Digital Timing Relay
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 700-HX86SU24
North Coast Part # 63303


  • Includes 10 functions or modes
  • Provides flash memory, no battery required
  • Offers 5 A, B300, 1-Pole SPDT contact rating
  • Offers socket or panel mounting
  • Includes digital timing relay with LCD display
  • Offers NEMA 4X/IP66 for washdown applications


Control Relay Data

  • Timing Mode: Multi-Function Timing Relay (14 Functions)
  • Contact Configuration: SPDT Contact Arrangement
  • Timing Range: 0.050 seconds to 9999 hours
  • Coil Voltage: 12-24 V DC / 24 V AC 50/60Hz


UPC 66246860378
GTiN 00662468603782
Type Digital Display
Mounting Type Front, DIN Rail
Coil Voltage 12-24 V
Family Brand Name Allen Bradley
Contact Configuration SPDT Contact Arrangement
Blade Dimensions 48 mm W x 85.5 mm D x 48 mm H
Action Multi-Function Timing Relay (14 Functions)
Sub Brand 700
Voltage 0-12 VDC
Standard CCC,CE,CUL,UL
