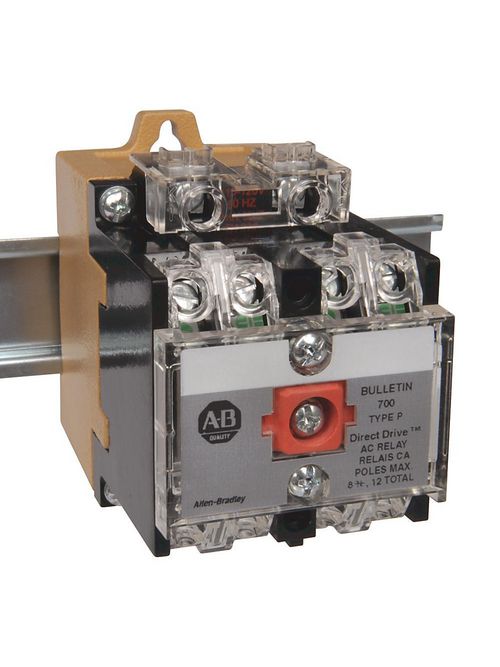

A-B 700-P000B22 600v Industrial Rel
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$120.19/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-GIA
Mfg Catalog # 700-P000B22
North Coast Part # 1007426

Features

  • Rugged construction
  • Finger-safe protection standard
  • For machine tool and other heavy-duty applications
  • NEMA and IEC ratings
  • Factory supplied standard at 120V AC and 24V DC - user configurable for field assembly
  • Can accommodate ring tongue terminals
  • 600V maximum AC/DC
  • Integral DIN Rail adapter on AC relays
  • Blank relays are available in all coil voltages for field custom configuration

Specifications

  • CoilCode: 220-230V 50Hz

Control Relay Data

  • AC or DC Control Voltage?: AC Control Voltage
  • Contact Current Rating: 10 A
  • Contact Configuration: Blank Relay
  • Mounting Type: Open Type DIN Rail Mount
  • Coil Voltage: 220-230V 50Hz

Enclosure Data

  • Enclosure Type: Open Style Device

Categories

Overview

UPC 66246809467
Item Long Description 600v Industrial Relay
GTiN 00662468094672
Type Bifurcated Contact, Heavy Duty, Industrial, Open Style
Applications Swbd ElecHld Control Relay
Mounting Type Open Type DIN Rail Mount
Coil Voltage 220/230 V
Family Brand Name Allen Bradley
Enclosure Type Open
Contact Configuration 0 NO, 0 NC
Standard KC
Amperage 10 Amp
Conductor Size 18-12 AWG
Temperature Rating -20 to 65 C
Contact Material Silver Nickel
Blade Dimensions 2-1/4 in W x 6-49/64 in H
Number of Poles 4 Pole
Load Rating 10 V, 50 mA
Operating Cycles 10 Million Mechanical
