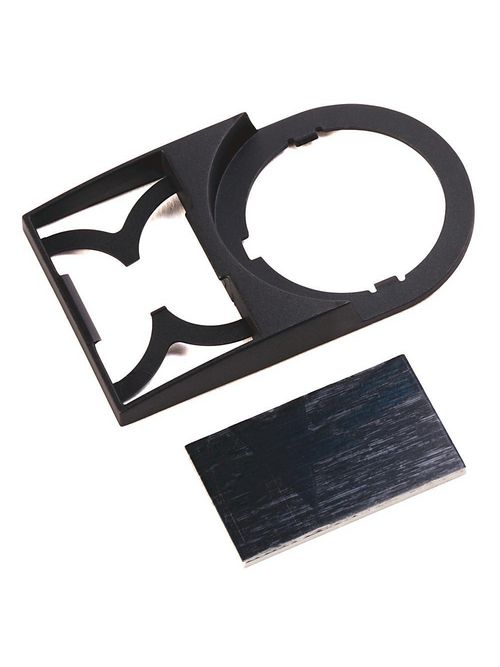

Allen-Bradley 800F-12BE100 30 x 50 mm Legend Plate Frame
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800F-12BE100
North Coast Part # 69139


  • Selector or toggle switch
  • 800FP plastic operators
  • Twist-to-release or key release
  • Flush or extended 2-color molded legend caps
  • Plastic or aluminum
  • Reset push button
  • Illuminated or non-illuminated
  • 22.5 mm mounting hole
  • 2-, 3-, and 4-position
  • Multi-operators
  • Maintained or spring return
  • Single turn potentiometer
  • Momentary or alternate action
  • 30 and 40 mm
  • Panel mount sounder
  • 800FM metal operators
  • Key selector switches
  • Mushroom or half-dome
  • Pilot light operators


  • Legend Plate Style: 30 X 50mm Std., 2 Piece Snap-In (Plate and Frame)
  • Mounting Orientation: Blank, No Text
  • Legend Opening Size: 22.5mm Opening
  • Text/Symbol: Custom Text/Symbol
  • Font Size: No Text
  • Packaging: Standard Pack,Quantity:10

Accessory Items

  • Accessories: Legend Plates


UPC 66246820893
GTiN 00662468208932
Color Black with White Text
Type 2-Piece
Applications Blank or Custom Text
Family Brand Name Allen Bradley
Blade Dimensions 30 x 50 mm
Orientation Blank, No Text
Used With 800F Series Push Buttons
Legend Blank
Sub Brand 800F PB
Standard KC
