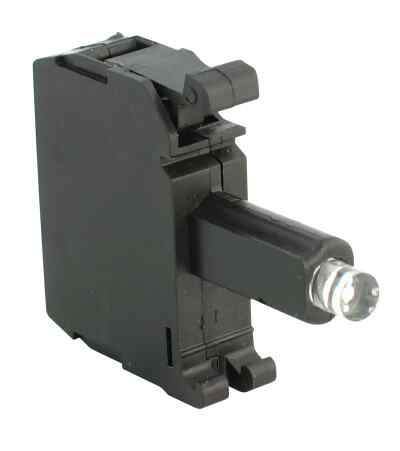

A-B 800F-PN3GX11V 22mm Back of Pane
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 800F-PN3GX11V
North Coast Part # 330587


  • 30 x 40 mm mounting matrix
  • Bifurcated contact blocks
  • One-hand latch removal
  • Integrated¬†light indicator¬†modules
  • Modular flexibility
  • Color-coded contact block plungers


Back Of Panel Data

  • Part Numbers: Composite

Latch Data

  • Mounting Style: Plastic Latch Mount

Power Module Data

  • Power Module Type: Integrated LED
  • Voltage: 24V AC/DC
  • Lamp Type: Green LED
  • Packaging: Standard Pack

Contact Block Data

  • Termination Style: Screw Contact Block
  • Contact Block Type: Low Voltage
  • Contact Blocks: 1 N.O. Low Voltage (QuadCONNECT)


GTiN 00662074544394
Color Green
Voltage 24 Volt
Type Integrated LED, Low Voltage
Mounting Type Plastic Latch
Family Brand Name Allen Bradley
Lamp Type LED
TC Connection Screw Contact Block
Sub Brand 800F PB
Product UPC 66207454439
Size 22 mm
Terminal Type Screw
Conductor Size 18-12 AWG
Contact Configuration 1 NO
Terminal Material Brass
Connection Type Screw Contact Block
