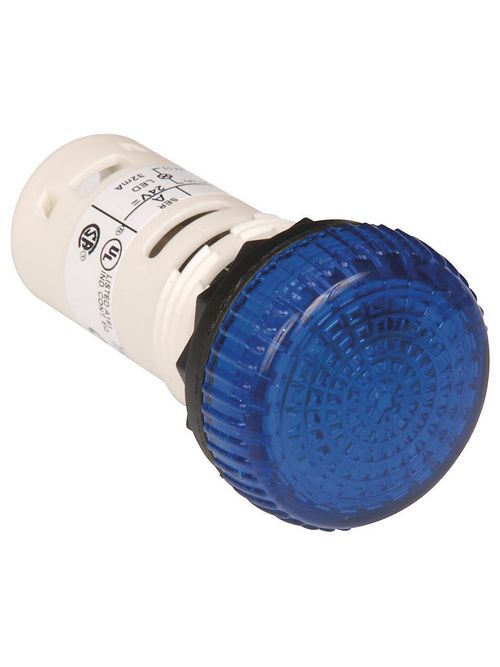

Allen Bradley 800FD-P6N3 22 mm Pilot Light
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$33.69/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800FD-P6N3
North Coast Part # 678730

Features

  • Illuminated or non-illuminated
  • IP66, NEMA Type 4/4X/13
  • Electrical and mechanical interlocks
  • Multi-operators
  • Low back-of-panel profile (45.7 mm)
  • 30 and 40 mm
  • Buttons are flush-mounted with the enclosure to reduce accidental operation
  • Key selector switches
  • Reset push button
  • Finger-safe contact blocks
  • Selector or toggle switch
  • 2-, 3-, and 4-position
  • Single turn potentiometer
  • Twist-to-release or key release
  • Compatible with Bulletin 800F accessories and enclosures
  • Momentary or alternate action
  • Plastic or aluminum
  • Pilot light operators
  • Mushroom or half-dome
  • Panel mount sounder
  • Anti-rotation tab provides accurate alignment and can be easily removed for use in panels without notches
  • Aesthetic design complements the Bulletin 800F modular line
  • 22.5 mm mounting hole
  • Uses standard Bulletin 800F extended push buttons
  • Flush or extended 2-color molded legend caps
  • Ring lug capability
  • Made of industrial-grade thermoplastic for superior chemical resistance
  • 800FP plastic operators
  • 800FM metal operators
  • Maintained or spring return

Specifications

  • Called From 800FC Library: Yes
  • Shape: Round Plastic (Type 4/13, IP66) Direct Wire Monolithic
  • Color: Blue
  • Voltage Rating: 24V AC/DC

Pilot Light Data

  • Operator Construction: Round Plastic (Type 4/13, IP66) Direct Wire Monolithic
  • Lens Cap: Blue
  • Termination Style: Screw
  • Packaging: Standard Pack, Quantity:1

Back Of Panel Data

  • Power Module Type: Integrated LED
  • Voltage: 24V AC/DC

Overview

UPC 66207431732
Item Long Description 22mm Pilot Light 800F PB
GTiN 00662074317325
Color Blue
Voltage 24 Volt
Type 22mm Pilot Light
Material Monolithic
Family Brand Name Allen Bradley
TC Connection No Contact Blocks/ Latch Only
Contact Configuration None
Sub Brand 800F PB
Lens Color Blue
Lens Material Monolithic
Standard CCC,CE,CSA,CUL,KC,UL
Connection Type No Contact Blocks/ Latch Only
