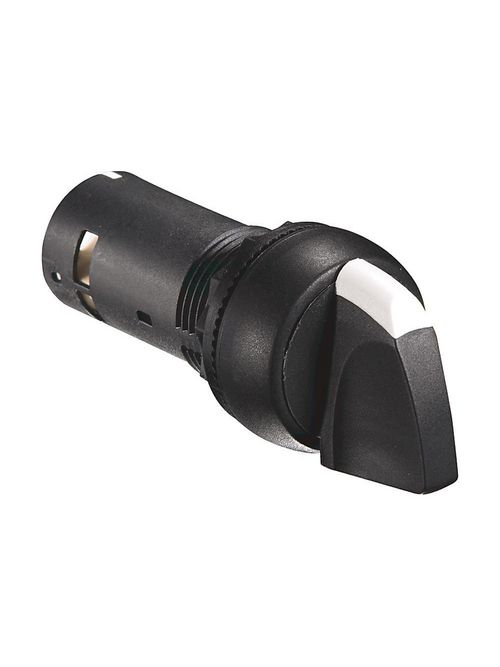

Allen-Bradley 800FD-SM22X11 22mm Selector Swi

Features

• Uses standard Bulletin 800F extended push buttons
• Electrical and mechanical interlocks
• IP66, NEMA Type 4/4X/13
• Finger-safe contact blocks
• Compatible with Bulletin 800F accessories and enclosures
• Low back-of-panel profile (45.7 mm)
• Ring lug capability
• Aesthetic design complements the Bulletin 800F modular line
• Anti-rotation tab provides accurate alignment and can be easily removed for use in panels without notches
• Made of industrial-grade thermoplastic for superior chemical resistance
• Buttons are flush-mounted with the enclosure to reduce accidental operation

Specifications

• Called From 800FC Library: No
• Contact Module: (1) N.O. - (1) N.C. contact

Selector Switch Data

• Operator Construction: Round Plastic (Type 4/13, IP66) Direct Wire Monolithic
• Operator Type: Selector Switch - Standard Knob
• Operator Function: Maintained, 2 Position
• Knob Color: Black
• Orientation: Standard
• Contact Termination Style: Screw
• Packaging: Standard Pack, Quantity:1

Back Of Panel Data

• Mounting Style: No Contact Blocks
• Part Numbers: No Back of Panel Part Numbers
• Contact Module (Click on image to enlarge diagram): (1) N.O. - (1) N.C. contact
