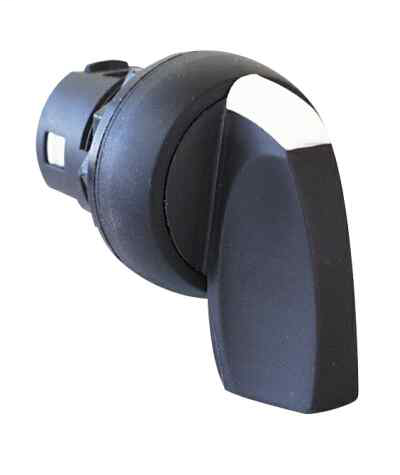

Allen-Bradley 800FM-HL22 22mm Selector Switch
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 800FM-HL22
North Coast Part # 885947


  • Called From 800FC Library: No

Selector Switch Data

  • Operator Construction: Round Metal (Type 4/13, IP66)
  • Operator Type: Selector Switch - Knob Lever
  • Operator Function: Spring Return from Left, 2 Position
  • Knob Color: Black
  • Orientation: Standard
  • Packaging: Standard Pack, Quantity:1

Back Of Panel Data

  • Mounting Style: No Contact Blocks
  • Part Numbers: No Back of Panel Part Numbers
  • Target Table Selections: Cam and Contact Blocks


UPC 66207380186
GTiN 00662073801863
Color Black Knob, White Insert
Type 22mm Selector Switch
Material Metal
Mounting Type No Contact Blocks
Operator Type Selector Switch - Knob Lever
Family Brand Name Allen Bradley
Actuator Spring Return from Left, 2 Pos
Orientation Standard Orientation
Sub Brand 800F PB
Size 22.5 mm
Terminal Type Spring Clamp
Conductor Size 18-14 AWG
Temperature Rating -25 to 70 C
Lens Type Round
Contact Material Silver Plated Brass
Blade Dimensions 27.9 mm D x 29.8 mm H
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Metal
Number of Positions 2
Action Spring Return from Left
Operating Cycles 1000000
Illumination Type No Power Module
