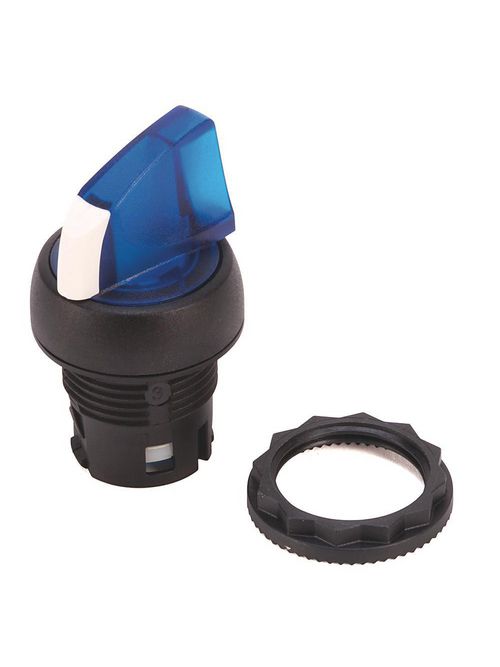

Allen-Bradley 800FP-LSM30 22mm Selector Switc
Product image thumbnail 0
Product image thumbnail 1
$22.30/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800FP-LSM30
North Coast Part # 330753

Specifications

Selector Switch Data

  • Operator Type: Illuminated Selector Switch
  • Operator Construction: Round Plastic (Type 4/4X/13, IP66)
  • Operator Function: Maintained, 3 Position
  • Knob Color: Amber
  • Orientation: Standard
  • Packaging: Standard Pack, Quantity:1

Back Of Panel Data

  • Part Numbers: No Back of Panel Part Numbers
  • Power Module Selection: No Power Module

Overview

UPC 66207434508
GTiN 00662074345083
Size 22.5 mm
Color Amber
Type 22mm Selector Switch
Material Plastic
Terminal Type Spring Clamp
Conductor Size 18-14 AWG
Operator Type Illuminated Selector Switch
Temperature Rating -25 to 70 C
Family Brand Name Allen Bradley
Lamp Type LED
Contact Material Silver Plated Brass
Actuator Maintained, 3 Position
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Metal
Number of Positions 3
Orientation Standard Orientation
Used With 800F Series 22.5 mm Push Button
Action Maintained
Operating Cycles 10000000
Sub Brand 800F PB
Voltage 300 VAC
Standard CCC,CSA,CUL,MARINE,UL
