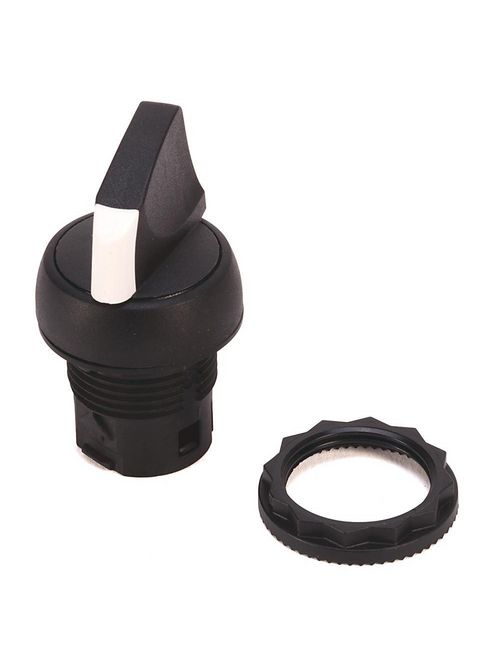

Allen-Bradley 800FP-SM22PX10 22 mm Selector Switch
Product image thumbnail 0
Product image thumbnail 1
$38.63/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800FP-SM22PX10
North Coast Part # 14093

Features

  • Ring lug capability
  • Buttons are flush-mounted with the enclosure to reduce accidental operation
  • Electrical and mechanical interlocks
  • Low back-of-panel profile (45.7 mm)
  • Anti-rotation tab provides accurate alignment and can be easily removed for use in panels without notches
  • Uses standard Bulletin 800F extended push buttons
  • Aesthetic design complements the Bulletin 800F modular line
  • Made of industrial-grade thermoplastic for superior chemical resistance
  • Compatible with Bulletin 800F accessories and enclosures
  • Finger-safe contact blocks
  • IP66, NEMA Type 4/4X/13

Specifications

  • Called From 800FC Library: Yes

Selector Switch Data

  • Operator Construction: Round Plastic (Type 4/4X/13, IP66)
  • Operator Type: Selector Switch - Standard Knob
  • Operator Function: Maintained, 2 Position
  • Knob Color: Black
  • Orientation: Standard
  • Packaging: Standard Pack, Quantity:1

Back Of Panel Data

  • Mounting Style: Plastic Latch Mount
  • Part Numbers: Composite
  • Target Table Selections: Cam and Contact Blocks

Overview

UPC 66246812180
GTiN 00662468121804
Size 22.5 mm
Color Black
Type 22mm Selector Switch
Material Plastic
Terminal Type Screw
Mounting Type Plastic Latch
Operator Type Selector Switch - Standard Knob
Family Brand Name Allen Bradley
TC Connection Screw Contact Block
Actuator Maintained, 2 Position
Contact Configuration 1 NO
Number of Positions 2
Orientation Standard Orientation
Sub Brand 800F PB
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
Connection Type Screw Contact Block
Illumination Type No Power Module
