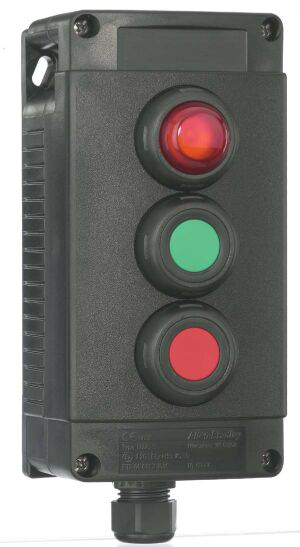

Allen-Bradley 800G-3F3AF4AE4A3 Assembled Stat

Features

• c-UL-us certified products for Class I Division 2 or Class I Zone 1 hazardous location applications
• ATEX certified products for Zone 1 applications in compliance with EN 60079 series standards that have been superseded
• Includes TS35 DIN Rail (base mount) or enclosure cover (panel mount) mounting options
• IP64, IP66, IP67 (panel mount cover accessory installed)
• Able to withstand a wide range of temperatures -55 … +60°C (-67 … +140°F)*
• Type 4X, IP66, IP67 (cable termination)
• Provides 30.5 mm mounting hole (front-of-panel operators)
• Offers standard or ganged assembled station configurations for easy installation
• ATEX, IECEx, INMETRO, and NEPSI certified products for Zone 1 and Zone 21 hazardous location applications

Specifications

• Operator/Meter: Non-Illuminated Flush Push Button
• Conduit Entry Type: Bottom Entry

Station Data

• Hazardous Location: Yes
• Ratings: Class I Div 2
• Enclosure Size: Three-Hole

Position 1

• Operator: Non-Illuminated Flush Push Button
• Push Button Color/Text: Green
• Contact Block/Lamp Module: 1 N.O. - 1 N.C. Base Mount

Position 2

• Operator: Non-Illuminated Flush Push Button
• Push Button Color/Text: Red
• Contact Block/Lamp Module: 1 N.O. - 1 N.C. Base Mount

Position 3

• Operator: Push-Pull Mushroom Push Button
• Push Button Color/Text: Red
• Contact Block/Lamp Module: 1 N.O. - 1 N.C. Base Mount

Conduit Data

• Conduit Type: 1 M20 Plastic Cable Gland for Cable Diameter 7...13mm
