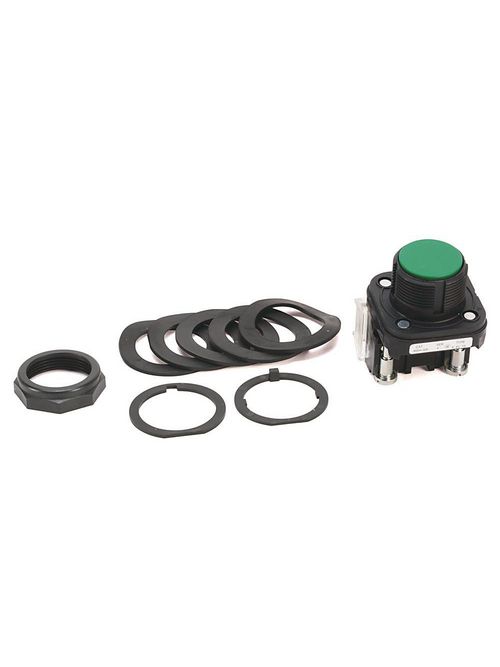

Allen-Bradley 800H-AR1D2 30 mm Momentary Push Button
Product image thumbnail 0
Product image thumbnail 1
$61.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800H-AR1D2
North Coast Part # 679426

Specifications

  • Hazardous Location: No

Assembly

  • Factory or User Assembled?: Factory Assembled

Push Button Data

  • Finger Safe Guards: No Guards
  • Operator Type: Flush Head
  • Cap/Button Color: Green
  • Block Type: Standard
  • Contact Blocks: 1 N.C.

Overview

UPC 66207362416
GTiN 00662073624165
Color Green Lens
Type 30mm Momentary Push Button
Conductor Size 18-14 AWG
Mounting Type Hole
Base Material Plastic
Operator Type Flush Head
Temperature Rating -40 to 131 F
Family Brand Name Allen Bradley
Lamp Type LED
Enclosure Type NEMA 1, 4, 4X, 12, 13
Actuator Flush Head
Contact Configuration 1 NC
Blade Dimensions 1-43/64 in L x 1-43/64 in W
Environmental Conditions 50 - 95% Relative Humidity
Lamp Voltage 600 VAC
Contact Rating 24 mA at 24 V Minimum, 10 A AC, 2.5 A DC Maximum
Block Type Standard
Action Momentary
Operating Cycles 10000000
Sub Brand 800H PB
Standard KC
