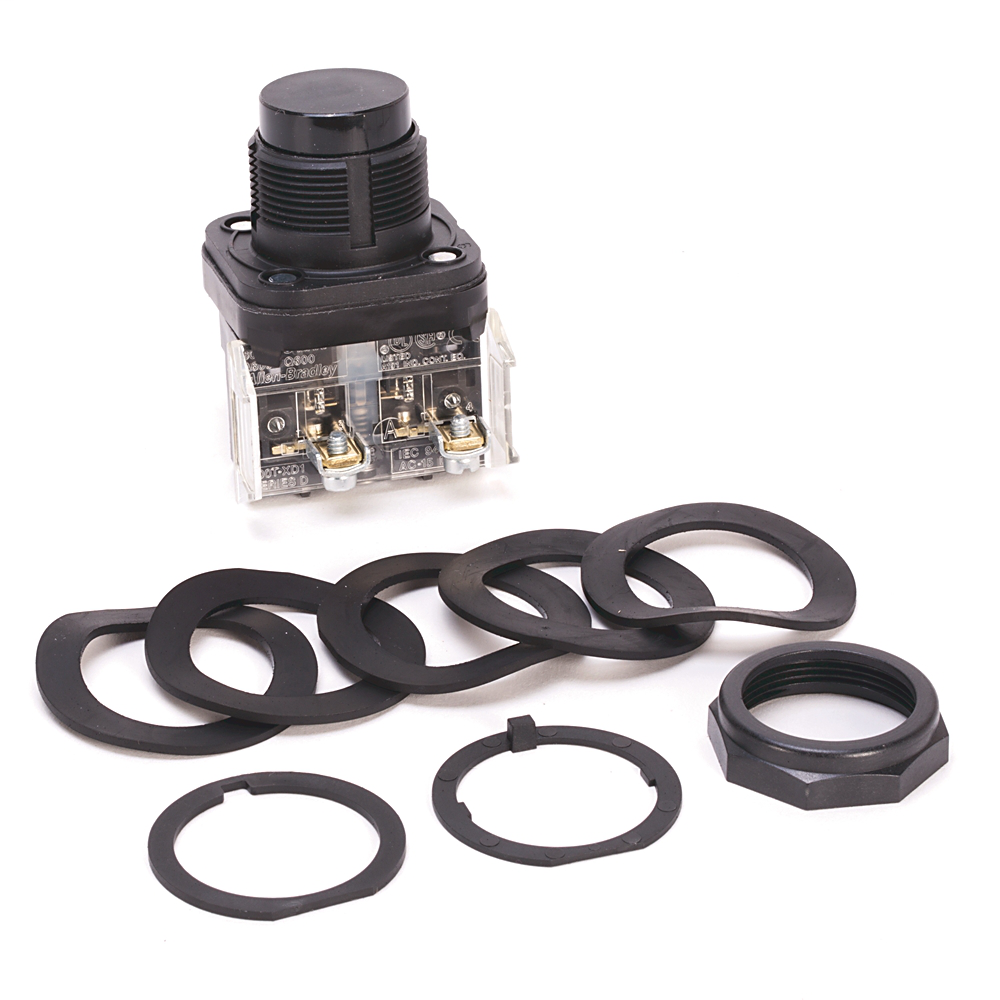

Allen-Bradley 800H-BR2D1 30.5 mm Type 4/4X/13 Non-Illuminated Black Extended Head 1 NO Momentary Contact Push Button
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 800H-BR2D1
North Coast Part # 676977



  • Factory or User Assembled?: Factory Assembled

Push Button Data

  • Finger Safe Guards: No Guards
  • Operator Type: Extended Head
  • Cap/Button Color: Black
  • Block Type: Standard
  • Contact Blocks: 1 N.O.


GTiN 00662073624493
Color Black Lens
Type 30mm Momentary Push Button
Conductor Size 18-14 AWG
Mounting Type Screw
Operator Type Extended Head
Temperature Rating -40 to 131 F
Family Brand Name Allen Bradley
Lamp Type LED
Enclosure Type NEMA 1, 4, 4X, 12, 13
Actuator Extended Head
Contact Configuration 1 NO
Blade Dimensions 1-43/64 in L x 1-43/64 in W
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Plastic
Contact Rating 24 mA at 24 V Minimum, 10 A AC, 2.5 A DC Maximum
Block Type Standard
Action Momentary
Operating Cycles 10000000
Sub Brand 800H PB
Product UPC 66207362449
