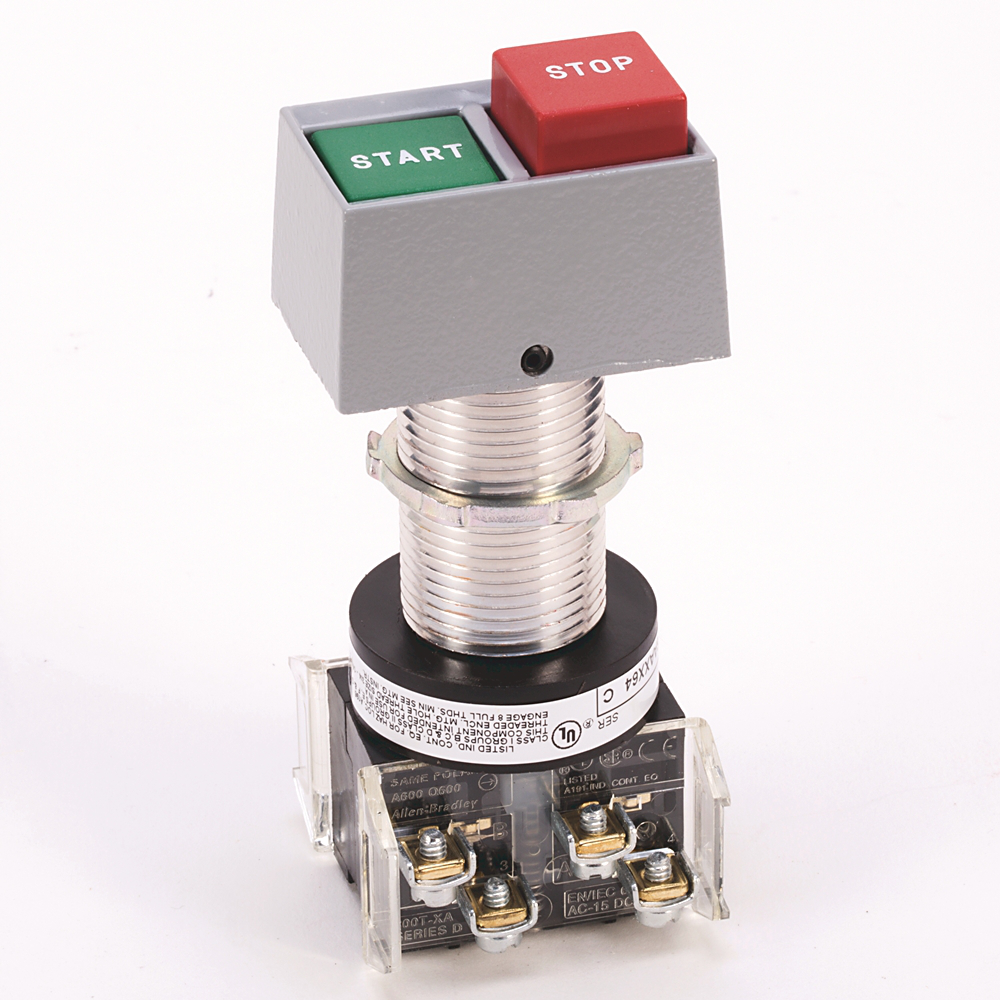

Allen Bradley 800H-DPH16AAXX64 16 mm NEMA 7/9 2NO 2NC Momentary Push Button Unit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800H-DPH16AAXX64
North Coast Part # 212709


  • Includes 0.75 in. — 14 NPSM barrel
  • Includes Type 7 and 9
  • Provides hazardous locations push buttons and stations
  • Offers Classes I, II, and III Divisions 1 and 2
  • Provides explosion-proof operators


Push Button Data

  • Barrel Type: Standard Barrel Length
  • Mounting: Horizontal
  • Button Color: Left Green Flush / Right Red Extended
  • Contact Blocks: 1 N.O. - 1 N.C.
  • Marking: Left/Top (H/V) , Right/Bottom (H/V) : START, STOP


UPC 66207351210
Item Long Description Type 7&9 Double Push Button 800H PB
GTiN 00662073512103
Size 3/4 in. - 14 NPSM
Operating Temperature 131 degrees F
Type Type 7 and 9
Barrel Type Standard
Applications Class I Div. 1, Class II Div. 1, Class III
Mounting Type Screw, Panel
Temperature Rating -20 to 55 C
Family Brand Name Allen Bradley
Enclosure Type A600, Q600
TC Connection Screw
Actuator Left Green Flush "START", Right Red Extended "STOP"
Contact Configuration 1 NO - 1 NC
Lamp Voltage 600 VAC/VDC
Contact Rating A600, Q600
Enclosure Metal
Action Momentary
Sub Brand 800H
Voltage 600 Volt
Connection Type Screw
