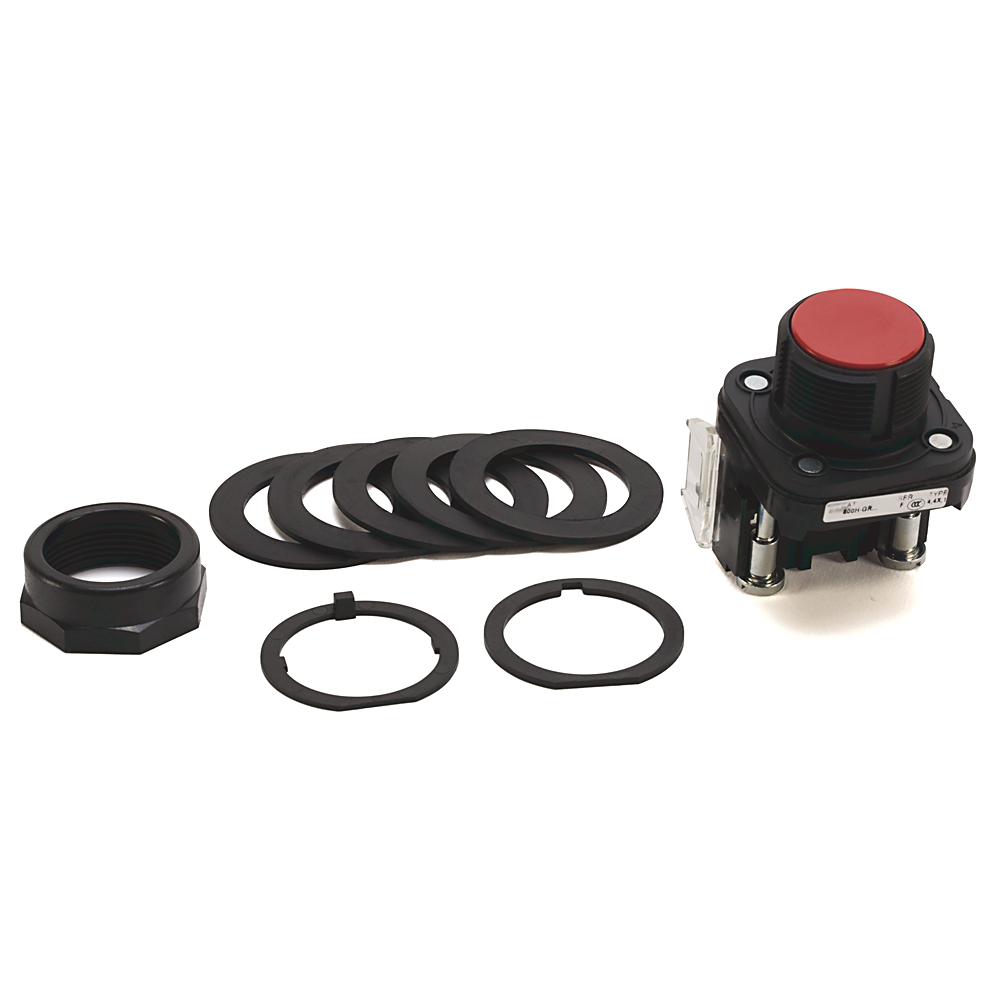

Allen-Bradley 800H-GR6A Type 7&9 Hazardous Location Push Button
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$83.39/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800H-GR6A
North Coast Part # 665933

Specifications

  • Hazardous Location: No

Assembly

  • Factory or User Assembled?: Factory Assembled

Push Button Data

  • Finger Safe Guards: No Guards
  • Operator Type: Bootless Guarded Head
  • Cap/Button Color: Red
  • Block Type: Standard
  • Contact Blocks: 1 N.O. - 1 N.C.

Categories

Overview

GTiN 00662073682028
Color Red
Type 30mm Momentary Push Button
Operator Type Bootless Guarded Head
Family Brand Name Allen Bradley
Actuator Guarded Head
Contact Configuration 1 NO, 1 NC Standard
Block Type Standard
Sub Brand 800H PB
Product UPC 66207368202
Conductor Size 18-14 AWG
Temperature Rating -40 to 131 F
Enclosure Type NEMA 4, 4X, 13
Blade Dimensions 1-43/64 in L x 1-43/64 in W
Environmental Conditions -40 to 185 F Storage Temperature, 50 - 95% Relative Humidity
Bezel Material Plastic
Contact Rating 24 mA at 24 V Minimum, 10 A AC, 2.5 A DC Maximum Continuous Thermal
Action Momentary
Operating Cycles 10000000
