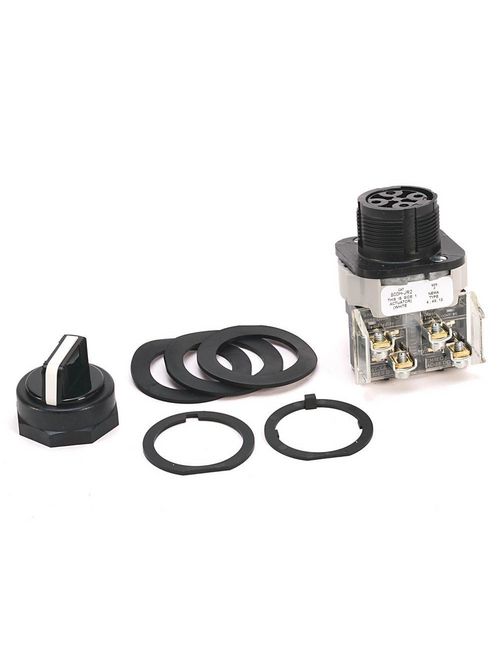

Allen-Bradley 800H-JR2KC1B 30 mm Selector Switch Push Button
Product image thumbnail 0
Product image thumbnail 1
$142.64/ea
In Stock | 2 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800H-JR2KC1B
North Coast Part # 158114

Specifications

  • Contact Block- Position 1- First Level: 1 N.O. - 1 N.C.
  • Contact Block- Position 2- First Level: 1 N.O. - 1 N.C.
  • Contact Block- Position 3- Second Level: No Contacts in this Position
  • Contact Block- Position 4- Second Level: No Contacts in this Position

Assembly

  • Factory or User Assembled?: Factory Assembled

Selector Switch Data

  • Hazardous Location: No
  • Finger Safe Guards: No Guards
  • Knob Insert or Metal Wing Lever Color: White
  • Operator Function: Maintained
  • Target Table Selections: Cam and Contact Blocks

Overview

UPC 66207331773
GTiN 00662073317739
Size 30.5 mm
Color Black/White
Type 30 mm Selector Switch
Terminal Type Screw
Conductor Size 18-14 AWG
Mounting Type Hole
Temperature Rating -40 to 131 F
Family Brand Name Allen Bradley
Lamp Type LED
Actuator 3 Position
Contact Configuration 2 NO, 2 NC
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Plastic
Number of Positions 3
Action Maintained
Operating Cycles 1000000
Sub Brand 800H PB
Voltage 600 VAC
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
