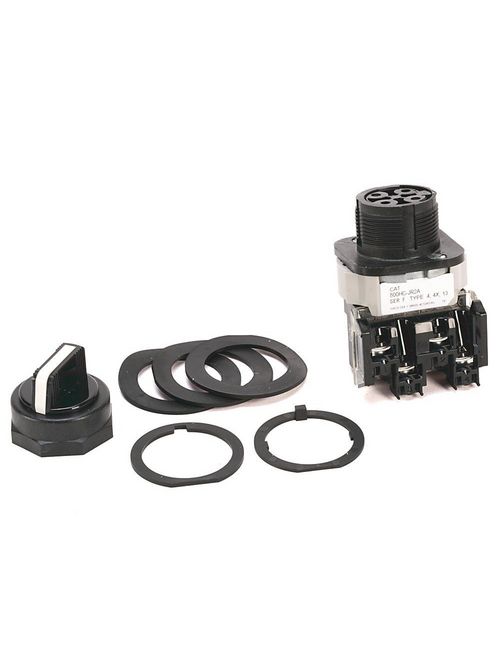

Allen-Bradley 800HC-JR5KC1B 30 mm Selector Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$180.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 800HC-JR5KC1B
North Coast Part # 760916

Specifications

  • Contact Block- Position 1- First Level: 1 N.O. - 1 N.C.
  • Contact Block- Position 2- First Level: 1 N.O. - 1 N.C.
  • Contact Block- Position 3- Second Level: No Contacts in this Position
  • Contact Block- Position 4- Second Level: No Contacts in this Position

Assembly

  • Factory or User Assembled?: Factory Assembled

Selector Switch Data

  • Hazardous Location: No
  • Finger Safe Guards: Finger Safe Guards
  • Knob Insert or Metal Wing Lever Color: White
  • Operator Function: Spring Return from Right
  • Target Table Selections: Cam and Contact Blocks

Categories

Overview

GTiN 00611320351767
Type 30 mm Selector Switch
Family Brand Name Allen Bradley
Actuator 3 Position
Contact Configuration 2 NO, 2 NC
Sub Brand 800H PB
Product UPC 61132035176
Size 30 mm
Color White
Conductor Size 18-14 AWG
Temperature Rating -40 to 131 F
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Plastic
Number of Positions 3
Action Spring Return from Right
Operating Cycles 1000000
