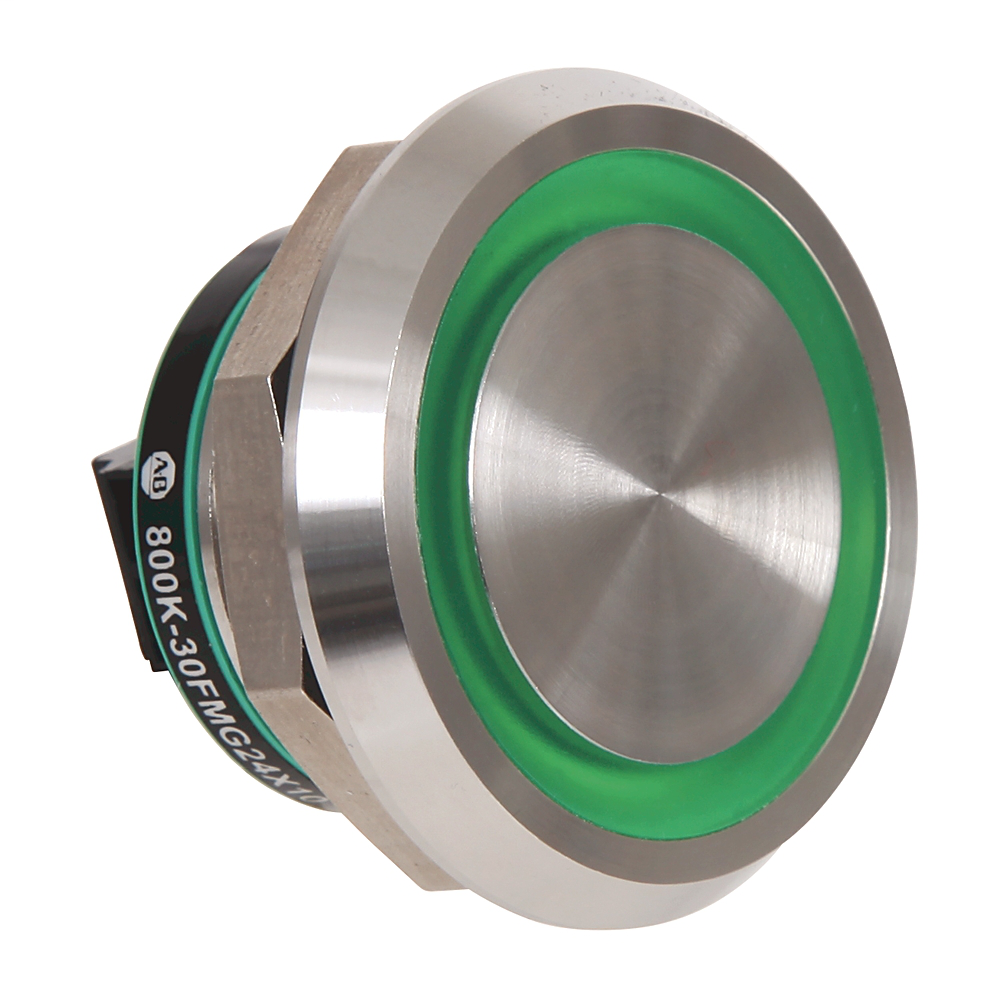

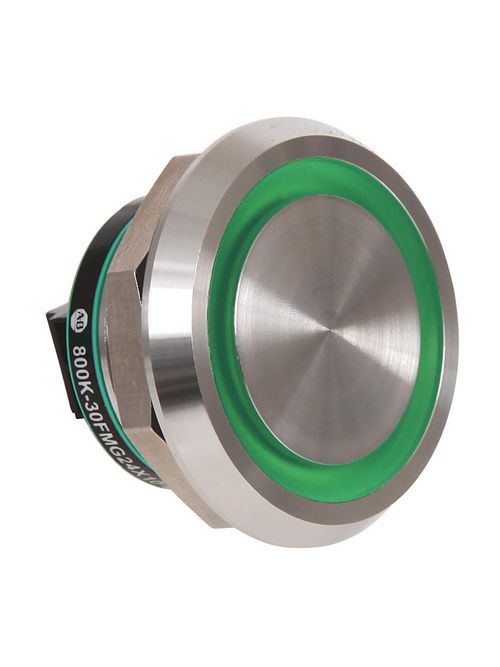

A-B 800K-30FMG24X10 30.5mm Piezo Pu
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$163.59/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 800K-30FMG24X10
North Coast Part # 1014775

Features

  • Minimizes bacteria growth potential from crevices
  • Includes UL Certified product for industrial panel
  • Minimizes frequent replacement due to corrosion
  • Minimizes production loss due to cleaning procedures
  • Offers custom laser engraving

Specifications

800K Selection

  • Operator Size: 30.5 mm
  • Operator Type: Flush, Momentary
  • Color: Green - Illuminated
  • Voltage: 24V DC
  • Contact Block: 1 N.O.
  • Termination Style: Screw Termination
  • Laser Engraving - Font Size: No Engraving

Overview

GTiN 00885630858548
Size 30mm
Color Green
Operating Temperature 122 degrees F
Voltage 24 Volt
Type 30mm Push Button Operator
Material Stainless Steel
Operator Type Flush,Momentary
Family Brand Name Allen Bradley
TC Connection Screw
Contact Configuration 1 NO
Contact Rating UL 508, General Use
Sub Brand 800K
Product UPC 88563085854
Applications General Use
Mounting Type Panel
Temperature Rating -25 to 50 C
Lamp Type LED
Bezel Material 316 Stainless Steel
Lamp Voltage 24 VDC
Standard C-TICK,CCC,CE,CSA,CUL,UL
Connection Type Screw
Illumination Type LED
Amperage 200 mA
