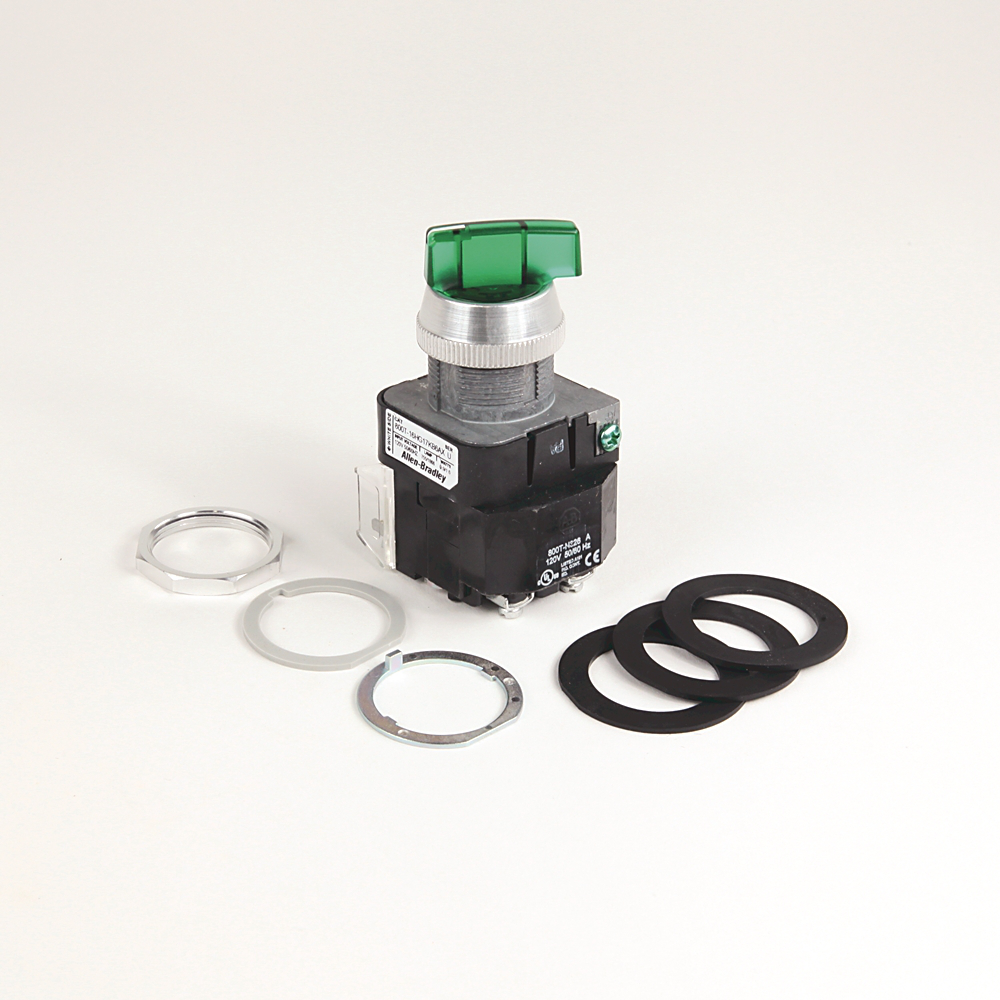

Allen-Bradley 800T-16HGH5KL8AX 30 mm Selector Switch Push Button
$281.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 800T-16HGH5KL8AX
North Coast Part # 665938

Specifications

Assembly

  • Factory or User Assembled?: Factory Assembled

Selector Switch Data

  • Finger Safe Guards: No Guards
  • Knob Type: Standard Knob
  • Operator Function: Spring Return from Right
  • Power Module: Transformer
  • Voltage: 120V AC 50/60 Hz
  • Illumination Options: LED
  • Knob Color: Green
  • Cam Option: KL8 Spring Return Cam
  • Contact Block First Level: 1 N.O. - 1 N.C.
  • Contact Block, Second Level: No Contacts in this Position

Categories

Overview

UPC 61132037909
GTiN 00611320379099
Color Green
Voltage 120 Volt
Type 30mm Selector Switch
Family Brand Name Allen Bradley
Actuator 2 Posn SS
Contact Configuration 1 NO, 1 NC
Sub Brand 800T PB
Size 30.5 mm
Terminal Type Screw
Conductor Size 18-14 AWG
Mounting Type Hole
Temperature Rating -40 to 131 F
Lamp Type LED
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Metal
Lamp Voltage 120 VAC
Number of Positions 2
Action Spring Return from Right
Operating Cycles 200000
Illumination Type LED
