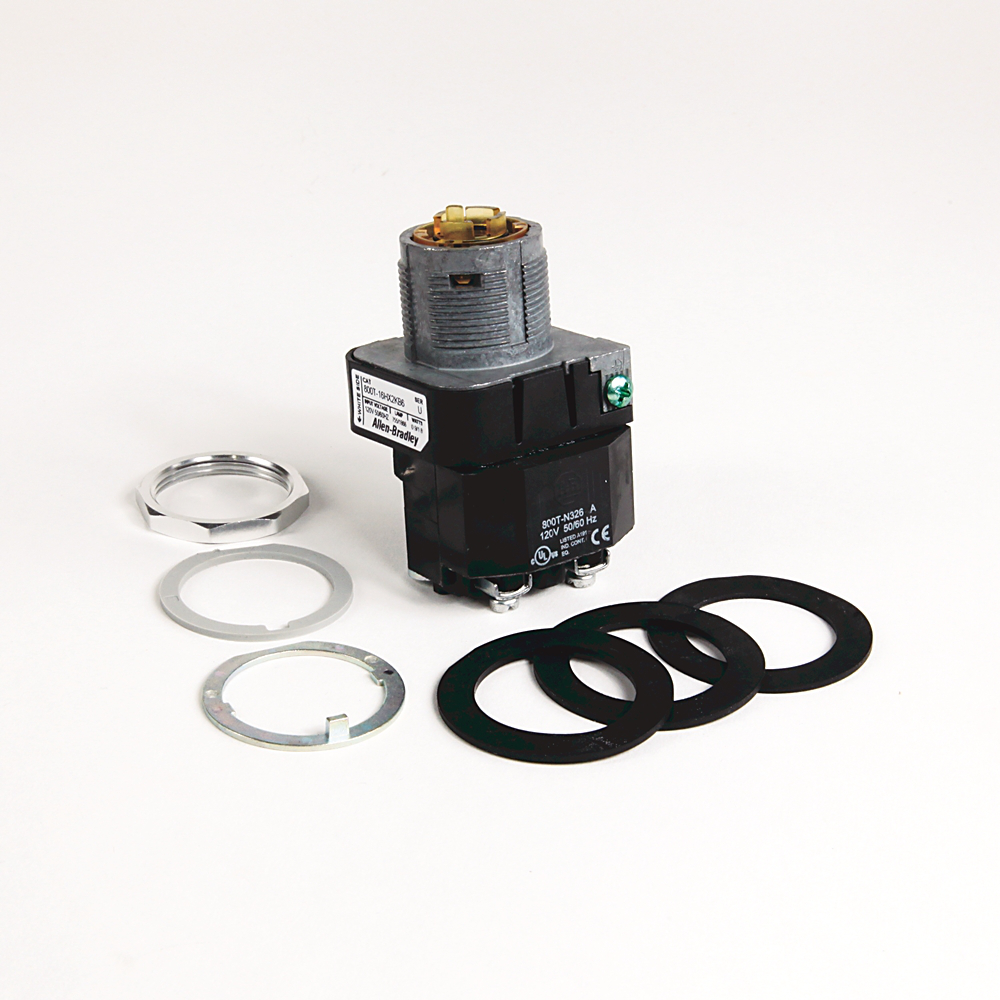

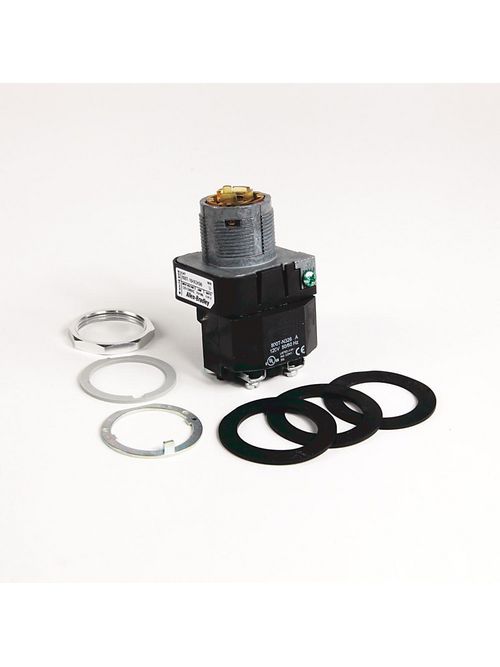

A-B 800T-16HX2KB6TX 30mm Selector S
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$243.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800T-16HX2KB6TX
North Coast Part # 1019293

Specifications

  • Hazardous Location: Yes
  • Head Type: Standard Knob
  • Lens Color: None (No Lens Cap)
  • Contact Block- Position 3- Second Level: No Contacts in this Position

Assembly

  • Factory or User Assembled?: Factory Assembled

Selector Switch Data

  • Finger Safe Guards: No Guards
  • Knob Type: Standard Knob
  • Operator Function: Maintained
  • Power Module: Transformer
  • Voltage: 120V AC 50/60 Hz
  • Illumination Options: Incandescent
  • Knob Color: None (No Lens Cap)
  • Cam Option: KB6 Maintained Cam
  • Contact Block First Level: 1 N.O. - 1 N.C. Logic Reed
  • Contact Block, Second Level: No Contacts in this Position

Categories

Overview

GTiN 00662468642125
Color No Knob
Voltage 120 Volt
Type 30mm Selector Switch
Family Brand Name Allen Bradley
Actuator 2 Posn SS
Contact Configuration 1 NO, 1 NC
Head Type Standard Knob
Sub Brand 800T PB
Product UPC 66246864212
Size 30 mm
Lamp Type Incandescent
Number of Positions 2
Illumination Type Incandescent
