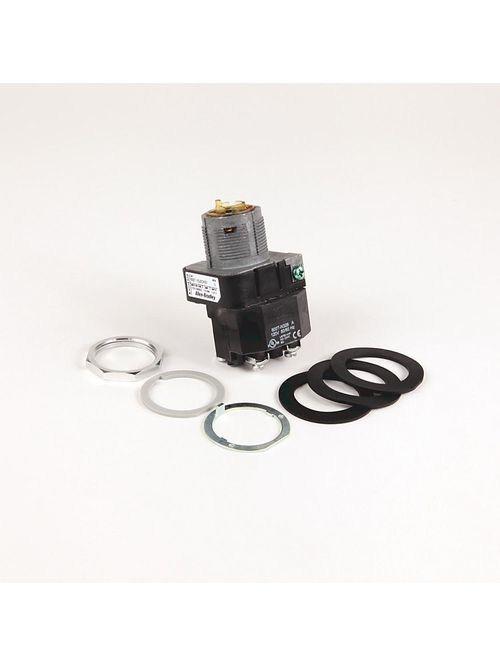

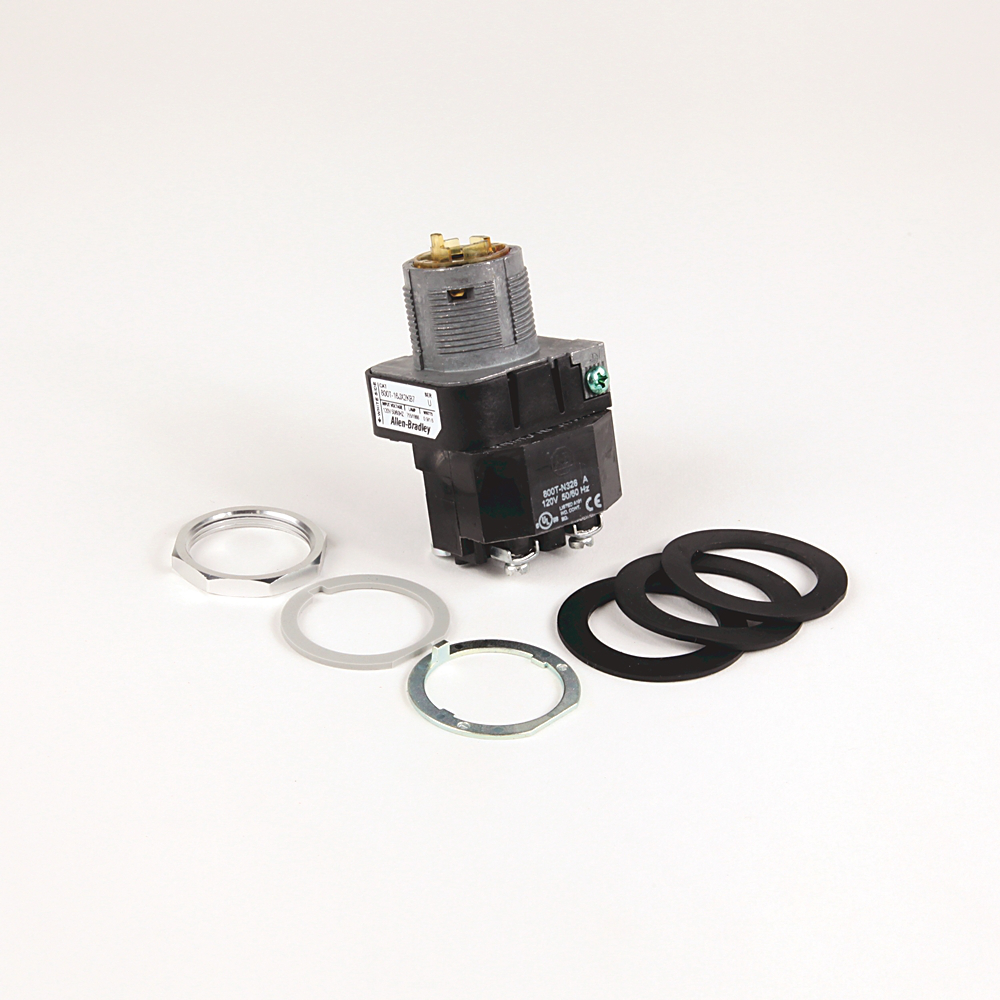

Allen-Bradley 800T-16JGH20KB7CX 30 mm Selector Switch Push Button
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$280.70/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800T-16JGH20KB7CX
North Coast Part # 213859

Specifications

Assembly

  • Factory or User Assembled?: Factory Assembled

Selector Switch Data

  • Hazardous Location: No
  • Finger Safe Guards: No Guards
  • Knob Type: Knob Lever
  • Operator Function: Spring Return from Both
  • Power Module Type: Transformer
  • Voltage: 120V AC 50/60 Hz
  • Illumination Options: LED
  • Knob Color: Green
  • Target Table Selections: Cam and Contact Blocks

Overview

UPC 61132051907
Item Long Description 800T PB, 30mm Selector Switch, 3 Position Selector Switch, 120V AC 50/60 Hz, Knob Lever Type, Green, Spring Return from Both, KB7 Cam, KB7 Cam, 120V AC 50/60 Hz, No Guards - on Terminals, LED Lamp, 1-NCLB 1-NC Standard Contacts, No Block in Position 3, Knob Lever Spring Return >-<, Device with Packaging
GTiN 00611320519075
Color Green
Voltage 120 Volt
Type 30mm Selector Switch
Family Brand Name Allen Bradley
Actuator 3 Posn SS
Contact Configuration 1-NCLB 1-NC Standard Contacts,No Block This Position
Sub Brand 800T PB
Illumination Type LED
