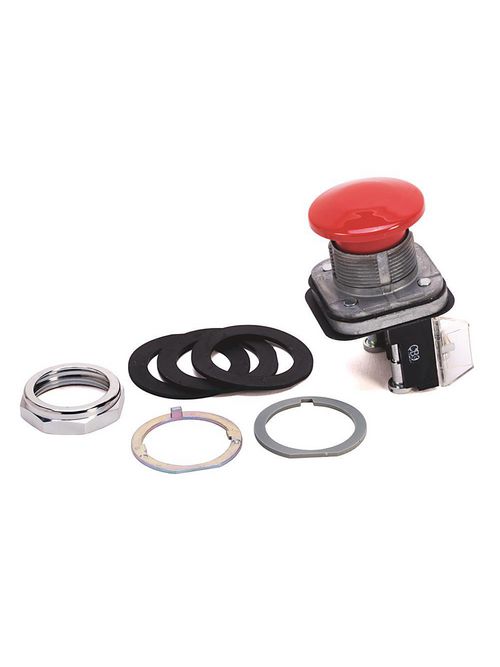

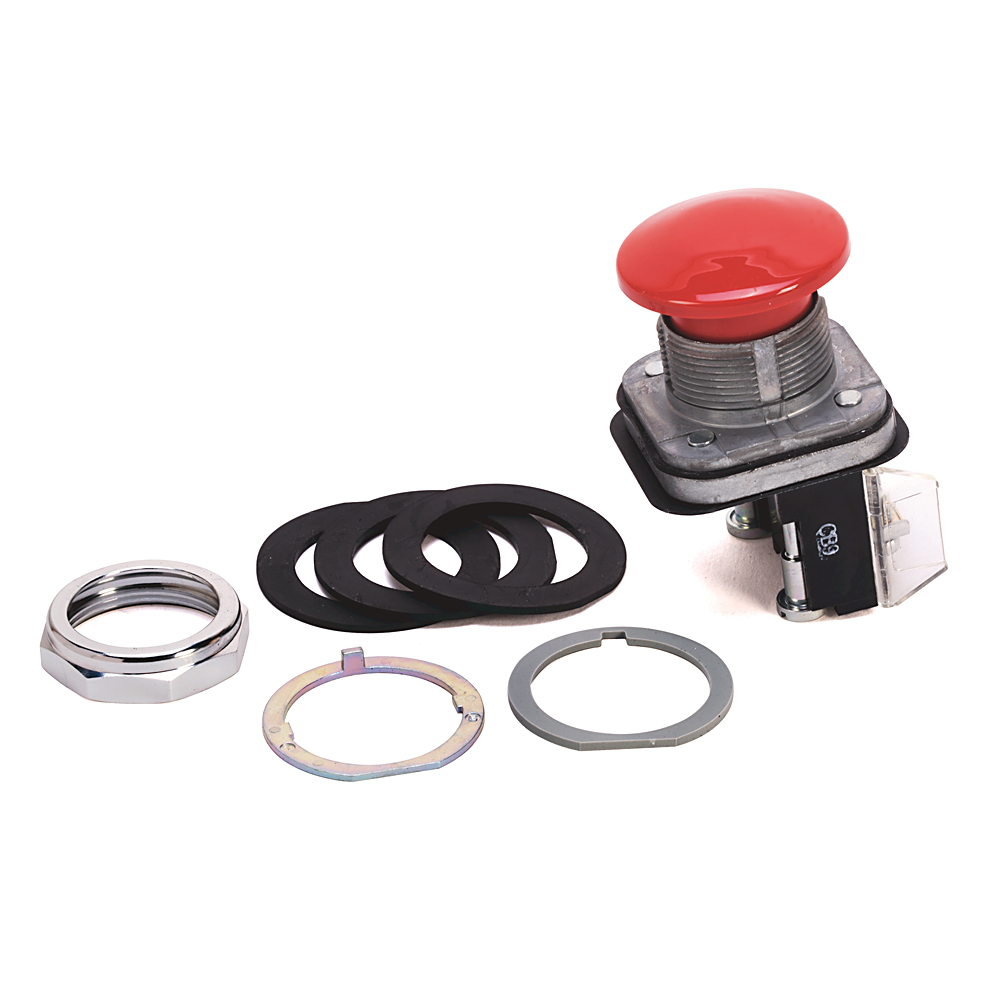

Allen-Bradley 800T-D6D1 30 mm Push Button
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$105.14/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800T-D6D1
North Coast Part # 816

Specifications

  • Hazardous Location: No
  • Special Mushroom Head: No Special Head
  • Block Type: Standard

Assembly

  • Factory or User Assembled?: Factory Assembled

Push Button Data

  • Finger Safe Guards: No Guards
  • Operator Type: Mushroom Head
  • Cap/Button Color: Red
  • Head/Cap Option: Standard Head/Cap
  • Block Type, First Level: Standard
  • Contact Blocks: 1 N.O.

Categories

Overview

UPC 78118013705
Item Long Description 30mm Momentary Push Button 800T PB
GTiN 00781180137051
Color Red Lens
Type 30mm Momentary Push Button
Conductor Size 18-14 AWG
Mounting Type Hole
Base Material Metal
Operator Type Mushroom Head
Temperature Rating -40 to 131 F
Family Brand Name Allen Bradley
Lamp Type LED
Enclosure Type NEMA 1, 4, 12, 13
Actuator Mushroom Head
Contact Configuration 1 NO
Blade Dimensions 1-43/64 in L x 1-43/64 in W x 1-21/32 in H
Environmental Conditions 50 - 95% Relative Humidity
Lamp Voltage 600 VAC/VDC
Contact Rating 24 mA at 24 V Minimum, 10 A AC, 2.5 A DC Maximum
Block Type Standard
Action Momentary
Operating Cycles 10000000
Sub Brand 800T PB
Standard CCC,CE,CSA,CUL,KC,MARINE,UL
