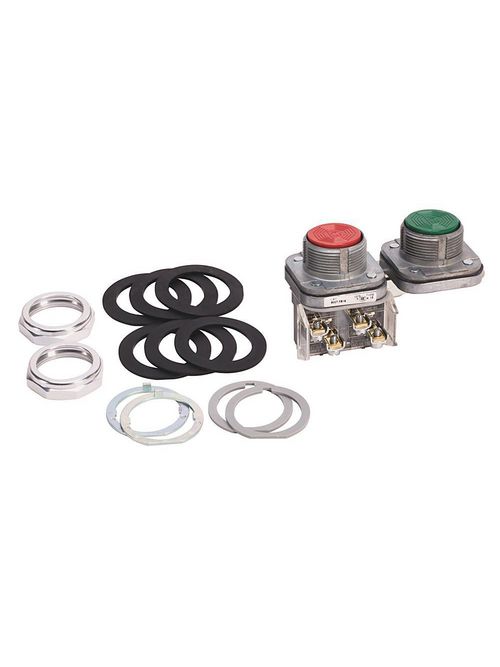

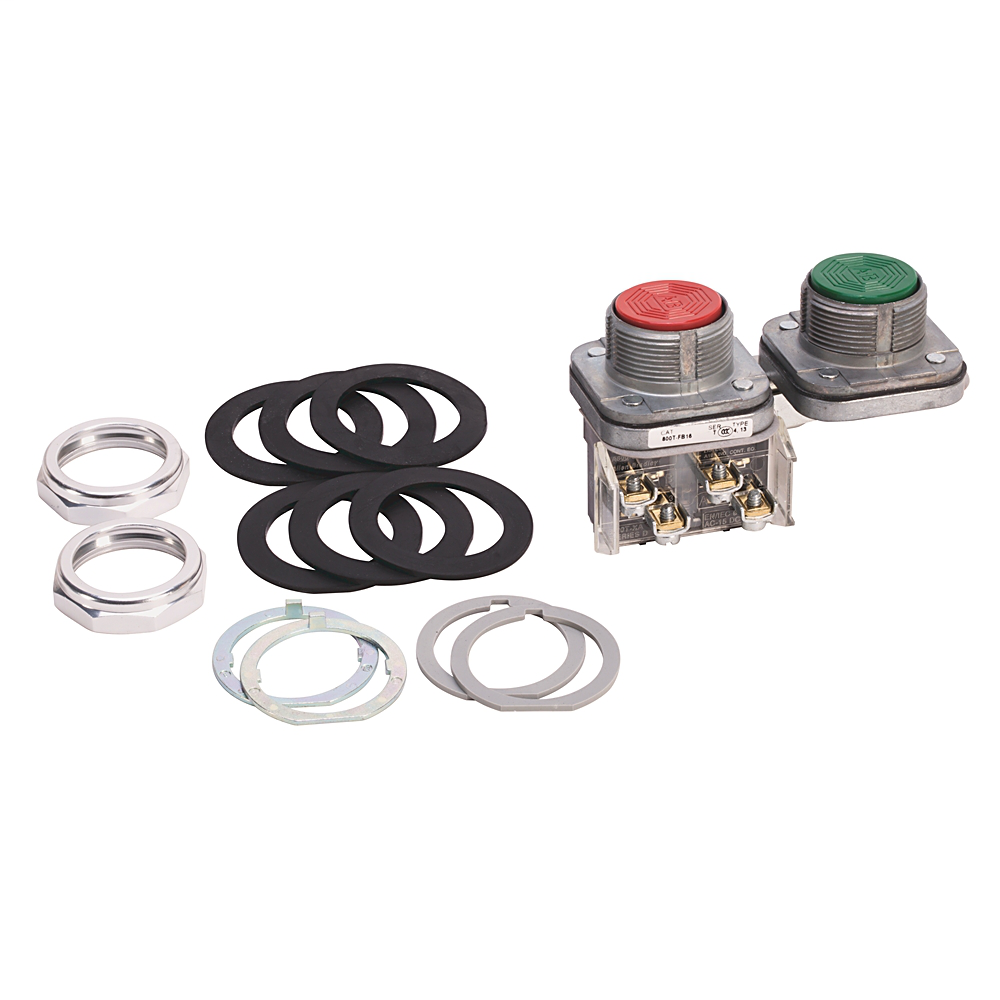

Allen-Bradley 800T-FB16 30 mm Double Push Button
Product image thumbnail 0
Product image thumbnail 1
$121.40/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800T-FB16
North Coast Part # 1550479

Specifications

  • Hazardous Location: No
  • Smooth Faced Buttons: No

Assembly

  • Factory or User Assembled?: Factory Assembled

Push Button Data

  • Finger Safe Guards: No Guards
  • Mounting: Vertical
  • Button Function (Upper or Left/Lower or Right): Maintained/Maintained
  • Operator Type (Upper or Left/Lower or Right): Flush/Extended
  • Upper or Left Button Color: Green
  • Lower or Right Button Color: Red
  • Cylinder Lock Function: No Lock Function
  • Block Type, First Level: No Contacts
  • Contact Blocks: No Contacts

Overview

UPC 66207337594
GTiN 00662073375944
Color Green/Red
Type Mechanically Interlocked
Mounting Type Vertical
Family Brand Name Allen Bradley
Actuator Extended - Flush
Contact Configuration No Contact Blocks
Sub Brand 800T PB
Standard KC
Conductor Size 18-14 AWG
Temperature Rating -40 to 131 F
Enclosure Type NEMA 4, 13
Blade Dimensions 1-43/64 in L x 3-1/2 in W x 1-27/32 in H
Environmental Conditions -40 to 185 F Storage Temperature, 50 - 95% Relative Humidity
Bezel Material Metal
Action Maintained
Operating Cycles 1000000
