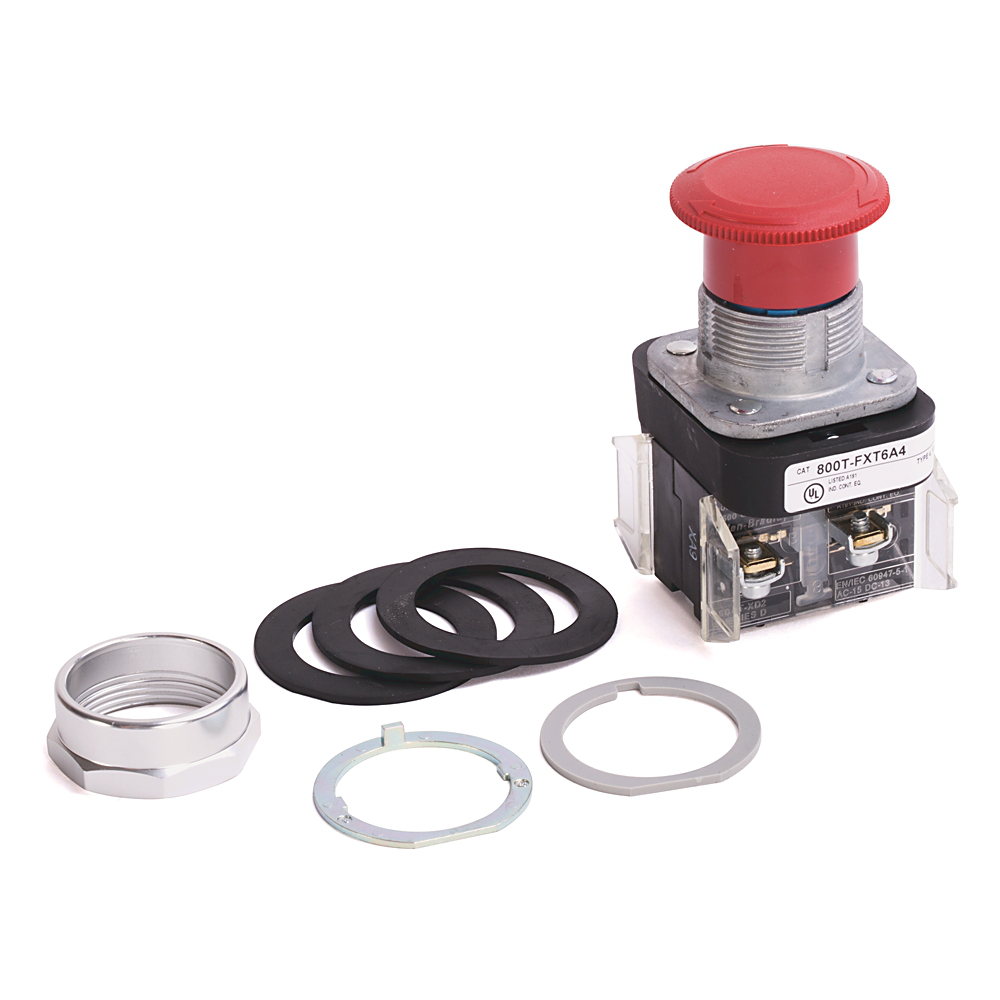

Allen-Bradley 800T-FXT6A4 30 mm Push Button
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800T-FXT6A4
North Coast Part # 998429


  • E Stop: Yes


  • Factory or User Assembled?: Factory Assembled

Push Button Data

  • Hazardous Location: No
  • Finger Safe Guards: No Guards
  • Head Type: Standard Size Plastic Mushroom Head (40mm) with Push-Pull/Twist
  • Operator Function: Push-Pull/Twist
  • E-STOP On Cap: No
  • Cap/Button Color: Red
  • Block Type: Standard
  • Contact Blocks: 2 N.C.


GTiN 00662072976968
Color Red Lens
Type 30mm Push-Pull Device
Conductor Size 18-14 AWG
Mounting Type Screw
Operator Type Standard Mushroom Head
Temperature Rating -40 to 131 F
Family Brand Name Allen Bradley
Lamp Type LED
Enclosure Type NEMA 1, 4, 12, 13
Actuator 2-Position
Contact Configuration 2 NC
Blade Dimensions 2-1/8 in L x 1-39/64 in W x 2-15/32 in H
Head Type Standard Size Plastic Mushroom Head (40mm) With Push-Pull/Twist
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Metal
Lamp Voltage 600 VAC/VDC
Contact Rating 24 mA at 24 V Minimum, 10 A AC, 2.5 A DC Maximum
Block Type Standard
Action Twist Release
Operating Cycles 250000
Sub Brand 800T PB
Product UPC 66207297696
Standard CCC,KC
