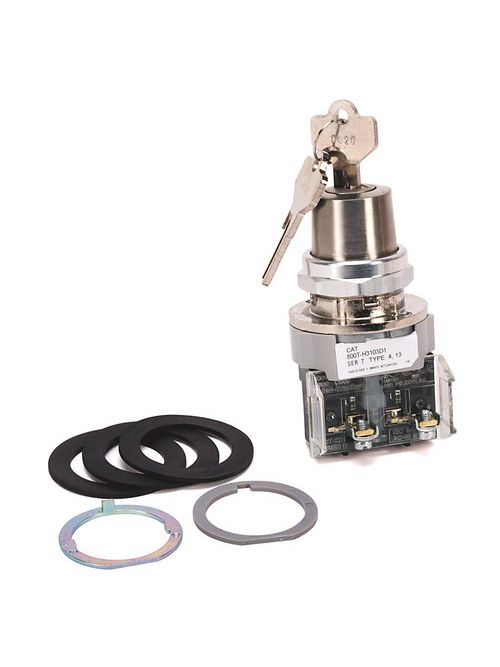

Allen-Bradley 800T-H3103D1 30 mm Selector Switch
Product image thumbnail 0
Product image thumbnail 1
$176.56/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800T-H3103D1
North Coast Part # 672361

Specifications

  • Hazardous Location: No
  • Block Type: Standard

Assmebly

  • Factory or User Assembled?: Factory Assembled

Selector Switch Data

  • Finger Safe Guards: No Guards
  • Key Removal Position: Maintained, Lock - Left, Std. Key
  • Key Options: D020
  • Cam Option: Standard Cam
  • Block Type, First Level: Standard
  • Contact Blocks: 1 N.O.

Overview

UPC 66207387720
GTiN 00662073877202
Type Cylinder Lock
Family Brand Name Allen Bradley
Actuator 2 Position Selector Switch
Contact Configuration 1 NO
Block Type Standard
Sub Brand 800T PB
Size 30 mm
Terminal Type Screw
Conductor Size 18-14 AWG
Temperature Rating -40 to 131 F
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Metal
Number of Positions 2
Used With 800T Push Buttons
Action Maintained, Key Removal from Left
Operating Cycles 1000000
