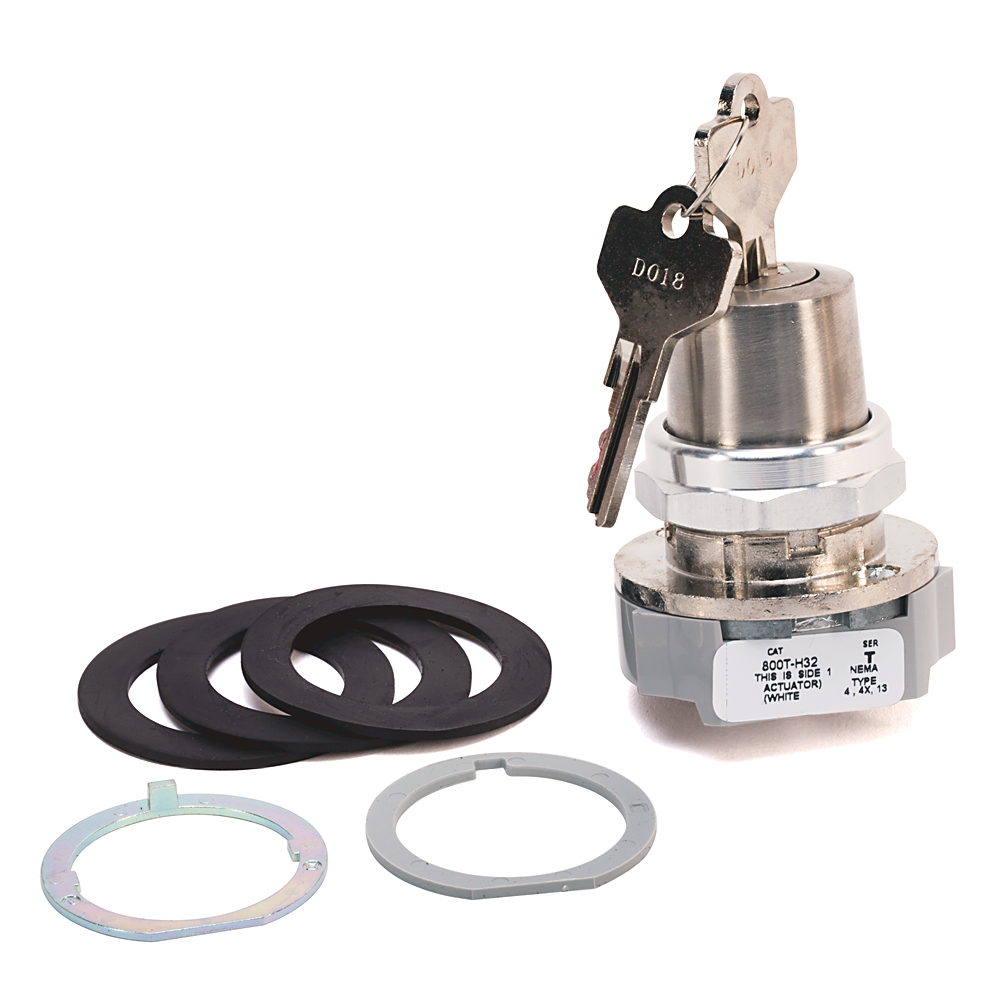

Allen-Bradley 800T-H32D2 30.5 mm Maintained 1NC 2-Position Cylinder Lock Non-Illuminated Selector Switch
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 800T-H32D2
North Coast Part # 878767


  • Hazardous Location: No
  • Block Type: Standard


  • Factory or User Assembled?: Factory Assembled

Selector Switch Data

  • Finger Safe Guards: No Guards
  • Key Removal Position: Maintained, Lock - Right, Std. Key
  • Key Options: Std. Key
  • Cam Option: Standard Cam
  • Block Type, First Level: Standard
  • Contact Blocks: 1 N.C.


UPC 66207341909
GTiN 00662073419099
Type Cylinder Lock
Family Brand Name Allen Bradley
Actuator 2 Position Selector Switch
Contact Configuration 1 NC
Block Type Standard
Sub Brand 800T PB
Size 30 mm
Color Black/White Insert
Terminal Type Screw
Conductor Size 18-14 AWG
Temperature Rating -40 to 131 F
Environmental Conditions 50 - 95% Relative Humidity
Bezel Material Metal
Number of Positions 2
Used With 800T Push Buttons
Action Maintained, Key Removal from Right
Operating Cycles 1000000
Standard KC
