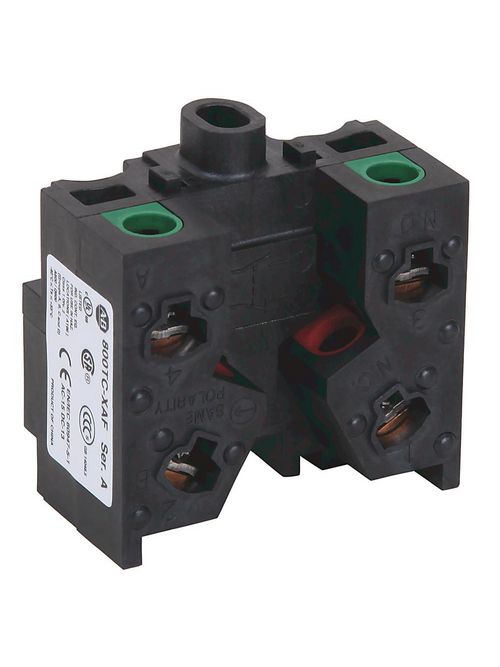

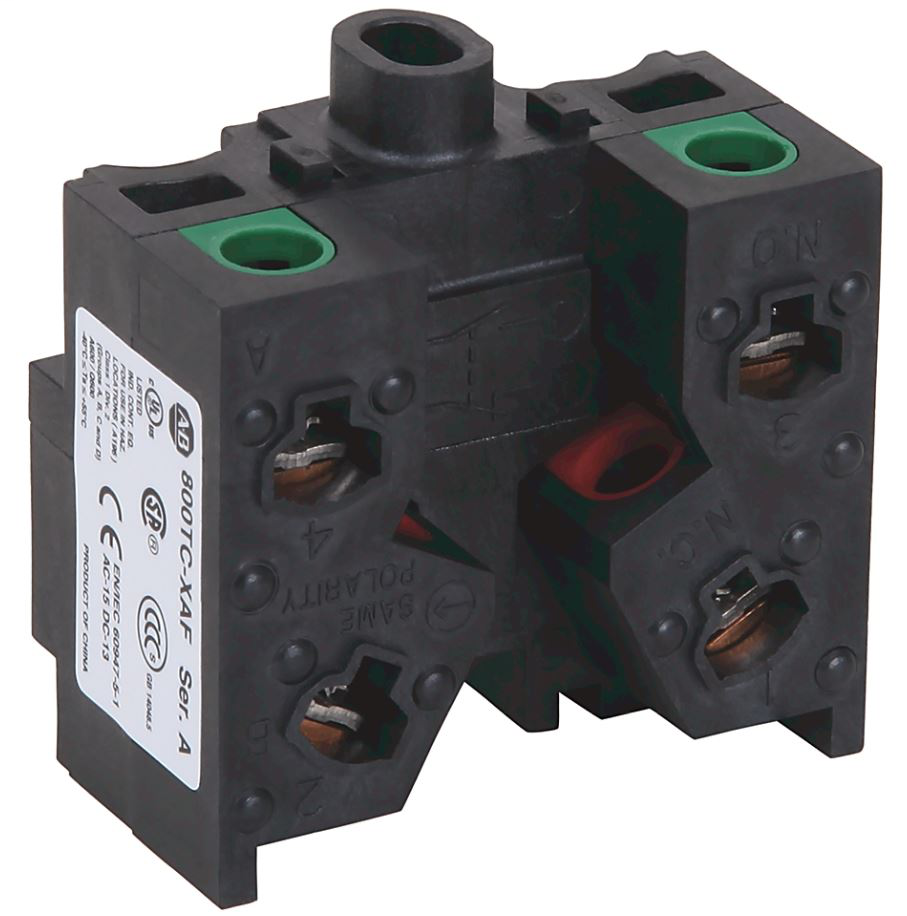

A-B 800TC-XAF 30mm Contact Block 1-
Product image thumbnail 0
Product image thumbnail 1
$142.14/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-PBS
Mfg Catalog # 800TC-XAF
North Coast Part # 1160345

Features

  • Offers Classes I, II, and III Divisions 1 and 2
  • Includes 0.75 in. — 14 NPSM barrel
  • Provides explosion-proof operators
  • Includes Type 7 and 9
  • Provides hazardous locations push buttons and stations

Specifications

  • Contact Type: Explosion-Protected Contact Block
  • Finger Safe Guards: Guards on Contacts
  • Number of Contacts: 1 N.O. - 1 N.C.

Selection Type

  • Select Group or Individual: Individual Accessory

Accessory Items

  • 800T/H Accessories: 800T Contacts

Overview

UPC 88717253099
GTiN 00887172530999
Size 30 mm
Type 30mm Contact Block 800T PB
Terminal Type Screw
Applications Class I Div 2 Hazardous Area
Mounting Type Front, Top
Family Brand Name Allen Bradley
TC Connection Screw Termination
Contact Configuration 1 NO, 1 NC
Contact Rating 10 A at 230 VAC-15
Used With 800T Push Button
Sub Brand 800T
Voltage 600 Volt
Standard CCC,CE,CSA,CUL,UL
Connection Type Screw Termination
