Allen-Bradley 801-ASC1411 General Purpose Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 801-ASC1411
North Coast Part # 71080


  • Suitable for a wide variety of applications
  • 0...40 °C (32...104 °F)


General Purpose Data

  • Enclosure Style: NEMA Type 4 Enclosure
  • Lever Type: Roller
  • Contact Operation: Slow Action, Spring Return
  • Housing Style (Right Click To Enlarge Diagrams): Type 10
  • Contact Arrangement: Arrangement C
  • Torque to Operate Contacts (Max.): 27.81N (6.25lb)
  • Travel to Operate Contacts (Nominal): 26°
  • Over Travel (Min): 4°


UPC 78118075892
GTiN 00781180758928
Family Brand Name Allen Bradley
Actuator Roller Lever
Contact Configuration 1 NO - 3 NC
Enclosure NEMA 10 Housing Style
Type General Purpose, Type 10, Arrangement C
Temperature Rating 0 - 40 C

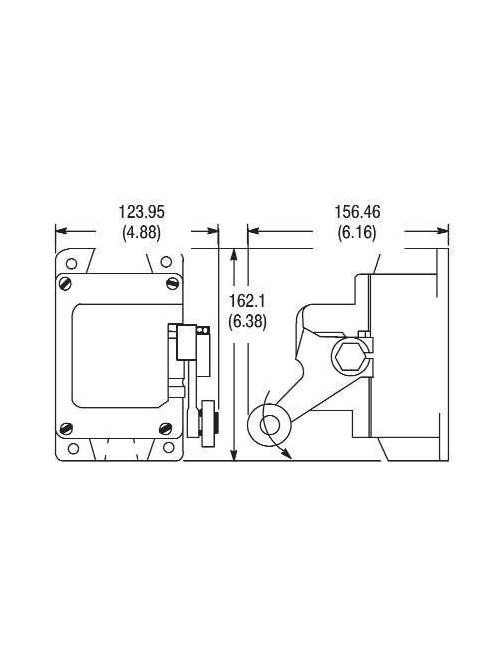

Blade Dimensions 123.95 mm W x 156.46 mm D x 162.1 mm H
Action Slow Action, Spring Return
Standard KC
