Allen-Bradley 801-DMC21 General Purpose Limit
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 801-DMC21
North Coast Part # 72308


  • 0...40 °C (32...104 °F)
  • Suitable for a wide variety of applications


General Purpose Data

  • Enclosure Style: NEMA Type 1 Enclosure
  • Lever Type: Rod or Chain
  • Contact Operation: Snap Action, Maintained

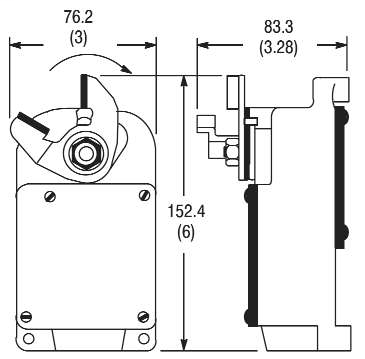

  • Housing Style (Right Click To Enlarge Diagrams): Type 9
  • Contact Arrangement: Arrangement C
  • Torque to Operate Contacts (Max.): 10N (2.25lb)
  • Travel to Operate Contacts (Nominal): 20.6mm (0.81in)
  • Over Travel (Min): 20.6mm (0.81in)



UPC 78118078103
GTiN 00781180781032
Family Brand Name Allen Bradley
Actuator Rod Or Chain Lever
Contact Configuration 1 NOC & 3 NCC
Enclosure NEMA 9 Housing Style
Standard KC
