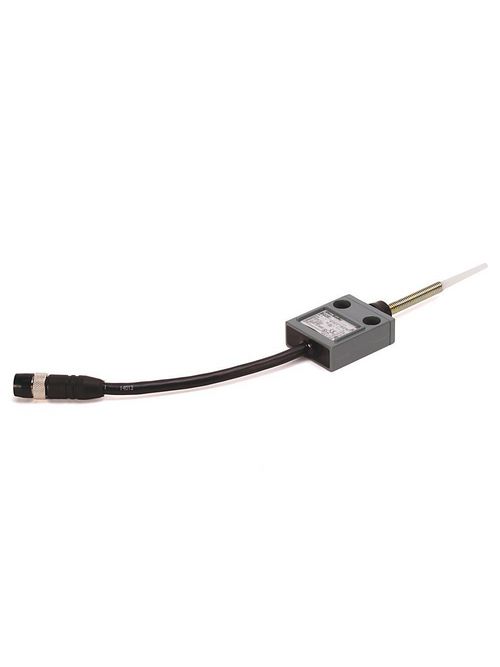

Allen-Bradley 802B-CSABBSXC3 Compact Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802B-CSABBSXC3
North Coast Part # 157638


  • Rugged die-cast housing
  • Compact size
  • Industry standard dimensions


Limit Switch Data

  • Switch Type: Compact
  • Head Configuration: Top Push, Booted
  • Mounting Style: Side Mount
  • Output Type: Standard
  • LED Indicator: No
  • Torque to Operate Contacts (Max.): 17.65N (3.97lb)
  • Travel to Operate Contacts (Nominal): 1.8mm (0.071in)
  • Maximum Travel: 5mm (0.197in)
  • Travel to Reset Contacts (Max.): 0.2mm (0.008in)
  • Connection Type: Preleaded


UPC 61132052115
Item Long Description 802B Compact Compact Limit Switch
GTiN 00611320521153
Size 802B Compact
Operating Temperature -10 C
Type Compact
Material Metal
Applications Full Switch (Head & Body)
Mounting Type Side
Connection Type Preleaded
Temperature Rating -10 to 70 C
Family Brand Name Allen Bradley
TC Connection 3 meter cable,Not Applicable,Not Applicable
Actuator Booted Top Push
Contact Configuration 1 NO - 1 NC
Cable Length 3 m
Number of Circuits 1
Contact Rating B300
Number of Poles 1 Pole
Enclosure Metal
Action Snap
