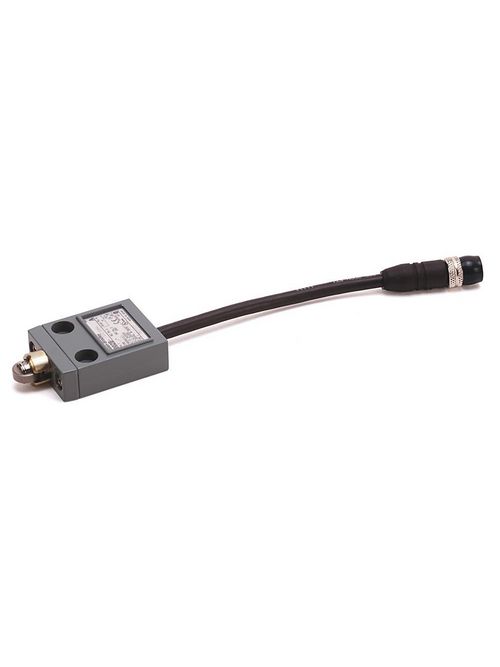

A-B 802B-CSADXSLR4 802B Compact Com
Product image thumbnail 0
Product image thumbnail 1
$111.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802B-CSADXSLR4
North Coast Part # 1612331

Features

  • Compact size
  • Rugged die-cast housing
  • Industry standard dimensions

Specifications

Limit Switch Data

  • Switch Type: Compact
  • Head Configuration: Top Push Roller
  • Mounting Style: Side Mount
  • Output Type: Standard
  • LED Indicator: Yes
  • Torque to Operate Contacts (Max.): 11.77N (2.65lb)
  • Travel to Operate Contacts (Nominal): 1.8mm (0.071in)
  • Maximum Travel: 5mm (0.197in)
  • Travel to Reset Contacts (Max.): 0.2mm (0.008in)
  • Connection Type: 4-pin AC Micro QD on 152mm (6in) pigtail

Overview

UPC 61132052067
GTiN 00611320520675
Size 802B Compact
Operating Temperature -10 C
Type Compact Limit Switch
Applications Full Switch (Head & Body)
Mounting Type Side
Connection Type 4-pin AC Micro QD
Family Brand Name Allen Bradley
TC Connection Not Applicable,4 Pins,AC Micro
Actuator Top Push Roller
Contact Configuration 1 Circuit
Contact Rating B150
Number of Poles 1 Pole
Enclosure Metal
Standard KC
