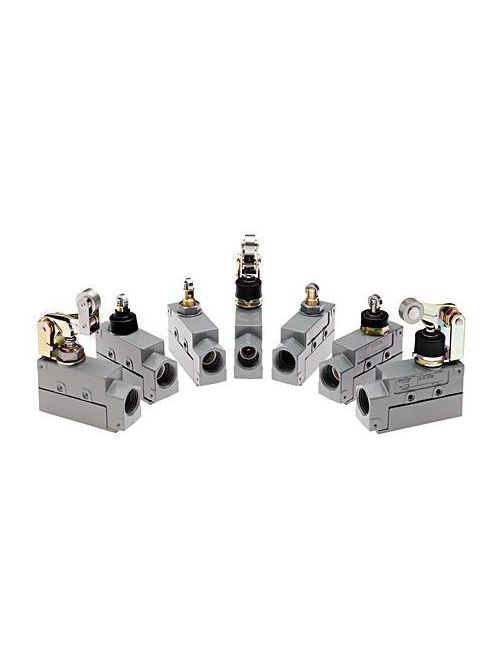

Allen-Bradley 802B-PFADBSX Precision Compact Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802B-PFADBSX
North Coast Part # 161375


  • Compact size
  • Rugged die-cast housing
  • Industry standard dimensions


Limit Switch Data

  • Switch Type: Precision
  • Head Configuration: Top Push Roller, Booted
  • Mounting Style: Flange Mount
  • Output Type: Standard
  • LED Indicator: No
  • Torque to Operate Contacts (Max.): 4.9N (1.09lb)
  • Travel to Operate Contacts (Nominal): 1mm (0.039in)
  • Maximum Travel: 4.5mm (0.177in)
  • Travel to Reset Contacts (Max.): 0.12mm (0.005in)
  • Connection Type: No Connection


UPC 61132052017
Item Long Description 802B Precision Compact Limit Switch
GTiN 00611320520170
Size 802B Precision
Operating Temperature -10 C
Type Compact Limit Switch
Applications Full Switch (Head & Body)
Mounting Type Flange
Connection Type No Connection
Family Brand Name Allen Bradley
TC Connection Not Applicable,Not Applicable,Not Applicable
Actuator Booted Top Push Roller
Contact Configuration 1 Circuit
Contact Rating Not Applicable
Number of Poles 1 Pole
Enclosure Metal
Standard KC
