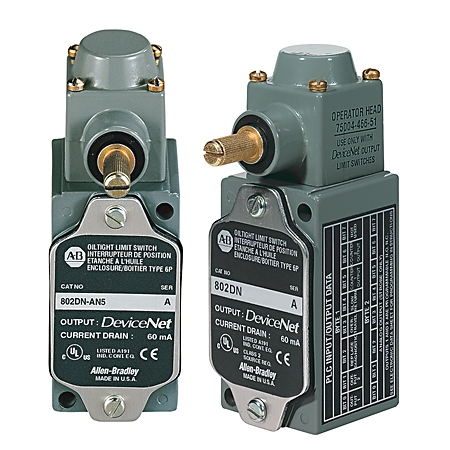

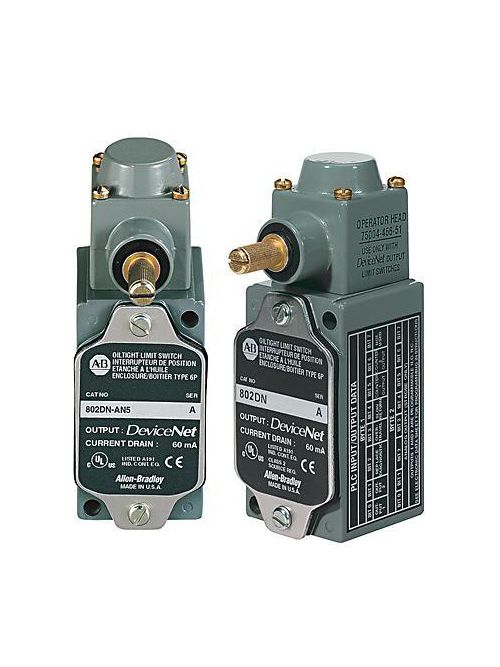

Allen-Bradley 802DN-AS2 Devicenet Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802DN-AS2
North Coast Part # 345874


  • Autobaud
  • Configurable counters with resets on each output
  • Teach and learn angle
  • Each output programmable to N.O. or N.C.
  • Direct connection to DeviceNet® network
  • Dual outputs with distinct programmable angles to operate
  • Programmable travel to reset (hysteresis)


  • Material handling
  • Transportation
  • Packaging
  • Switches Case Studies — View our case studies site to discover how customers have applied Allen-Bradley switch products in their applications.
  • Food processing


  • CSA Certified
  • UL Listed
  • CE Marked for all applicable directives

Limit Switch Data

  • Mode of Operation: CW and CCW operation
  • Travel to Reset Contacts (Max.): Programmable
  • Torque to Operate Contacts (Max.): 0.34N.m (3lb in)
  • Connection Type: 2m (6.5ft) cable
  • Actuation Type: No Lever
  • Travel to Operate Contacts (Nominal): Programmable
  • Maximum Travel: 54°

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected



UPC 61132033760
Item Long Description DeviceNet Limit Switch
GTiN 00611320337600
Size 802T Non Plug-In Standard
Operating Temperature 54C,-18C
Type Limit Switch
Applications Full Switch (Head and Body)
Family Brand Name Allen Bradley
TC Connection 2 M Cable,Not Applicable
Actuator No Lever
Contact Configuration 2 Circuits
Number of Poles 4 Pole
Enclosure Metal
