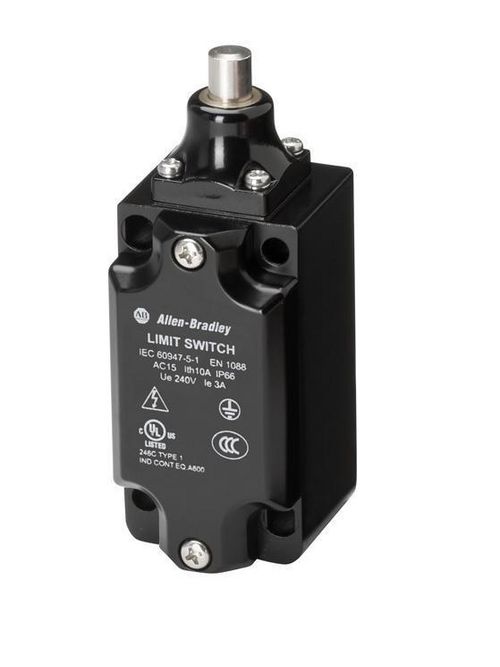

Allen-Bradley 802K-MDPS11E Large Metal Limit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802K-MDPS11E
North Coast Part # 1349071


  • Positive operation, forced disconnection of contacts


Operator Type Selection

  • Body Style: EN50041 (30x60mm), Metal, Black
  • Operator Type: Dome Plunger

Position Switch Data

  • Contacts (Safety/Auxiliary): 1 N.C., 1 N.O.
  • Contact Type: Snap Acting
  • Connection Type: 1/2 inch NPT Conduit


UPC 88495167399
Item Long Description Large Metal Limit Switch Non-Safety
GTiN 00884951673991
Type General Purpose, Large
Applications Non-Safety
Connection Type 2 x M5, Any Position
Operator Type Dome Plunger
Family Brand Name Allen Bradley
TC Connection 1/2 in NPT Conduit
Actuator Dome Plunger, Spring Rod
Number of Poles 2 Pole
Material Die-Cast Alloy
Temperature Rating -25 to 65 C
Contact Configuration 1 NC Safety, 1 NO Auxiliary
Blade Dimensions 43 mm W x 105 mm H
Environmental Conditions 10 - 55 Hz Vibration, 0.35 Amplitude, 30 Gn 3 Pulses Per Axis Shock, Pollution Degree 3
Action Snap Action
Operating Cycles 10000000
Standard KC
