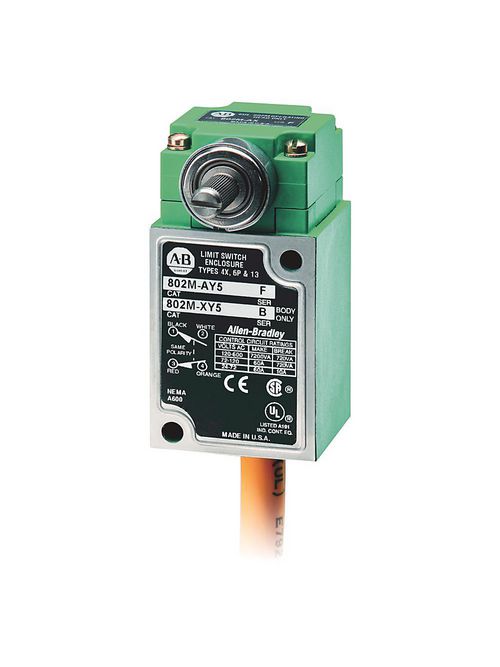

Allen-Bradley 802M-AY5 Factory Sealed Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$225.50/ea
Usually ships within 9 to 13 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802M-AY5
North Coast Part # 18938

Features

  • Operating heads are mountable in four positions, 90° apart
  • Pre-wired and factory sealed

Specifications

Pre-Wired Factory Sealed Data

  • Switch Components: Complete Switch
  • Actuation Type: Lever Type, Spring Return, Standard Operating Torque
  • Number of Circuits: 2-Circuit
  • Mode of Operation: CW and CCW operation
  • Travel to Operate Contacts (Max.): 8°
  • Torque to Operate Contacts (Max.): 0.34N.m (3lb in)
  • Travel to Reset Contacts (Max.): 6°
  • Maximum Travel: 86°

Modifications

  • 24V DC Switch: Not 24V DC Model
  • Indicating Lights: No Indicating Light(s)
  • Connection Options: 1.52m (5ft) length STO cable (standard)

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected

Categories

Overview

UPC 66207370693
Item Long Description Factory Sealed Limit Switch
GTiN 00662073706939
Type Factory Sealed
Material Metal
Mounting Type Horizontal
Connection Type Cable Preassembled
Temperature Rating 1 C
Family Brand Name Allen Bradley
TC Connection Cable
Actuator Rotary Standard Trip,Lvr Type, Sprg Rtn, Std Trip
Cable Length 5 ft
Blade Dimensions 29.4 mm W x 46 mm H
Number of Poles 2 Pole
Standard CCC,CE,CSA,KC,UL
