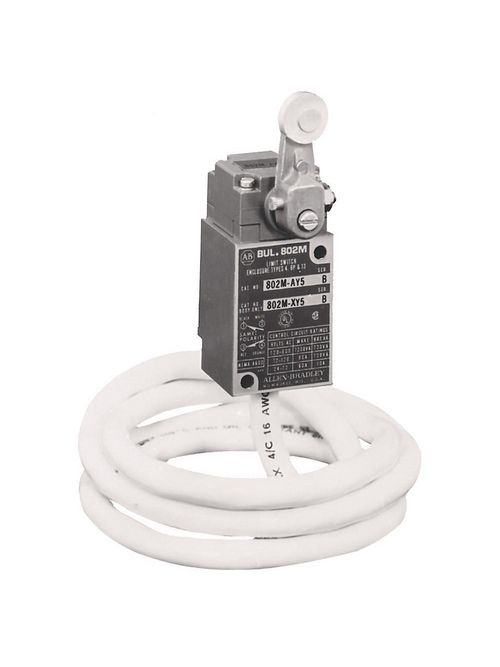

Allen-Bradley 802M-H1Y5 Factory Sealed Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$268.21/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 802M-H1Y5
North Coast Part # 160876

Features

  • Operating heads are mountable in four positions, 90° apart
  • Pre-wired and factory sealed

Specifications

Pre-Wired Factory Sealed Data

  • Switch Components: Complete Switch
  • Actuation Type: Lever Type, Spring Return, High Operating Torque
  • Number of Circuits: 2-Circuit
  • Mode of Operation: CW operation only, lever can be moved CCW
  • Travel to Operate Contacts (Max.): 15°
  • Torque to Operate Contacts (Max.): 0.56N.m (5lb in)
  • Travel to Reset Contacts (Max.): 4°
  • Maximum Travel: 86°

Modifications

  • 24V DC Switch: Not 24V DC Model
  • Indicating Lights: No Indicating Light(s)
  • Connection Options: 1.52m (5ft) length STO cable (standard)

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected

Overview

GTiN 00662073709374
Type Factory Sealed Limit Switch
Family Brand Name Allen Bradley
TC Connection Cable
Actuator Rotary Short Trip,Lvr Type, Sprg Rtn, Short Trip
Cable Length 5 ft
Number of Poles 2 Pole
Product UPC 66207370937
Connection Type Cable
