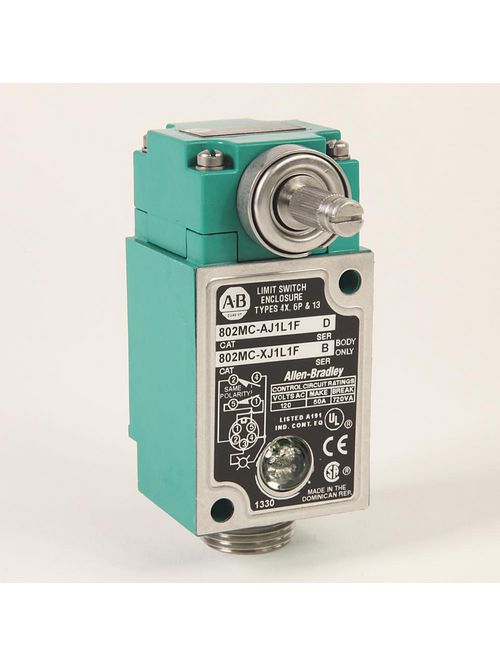

Allen-Bradley 802MC-AJ1L1F Corrosion Resistant Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$384.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802MC-AJ1L1F
North Coast Part # 657

Specifications

Switch Data

  • Switch Components: Complete Switch
  • Actuation Type: Lever Type, Spring Return, Standard Operating Torque
  • Number of Circuits: 2-Circuit
  • Mode of Operation: CW and CCW operation
  • Travel to Operate Contacts (Max): 15°
  • Torque to Operate Contacts (Max.): 0.34N.m (3lb in)
  • Travel to Reset Contacts (Max.): 6°
  • Maximum Travel: 86°

Modifications

  • 24V DC Switch: AC Model
  • Indicating Lights: LED Indicating Light: 120V AC 50-60Hz, Wired to N.O. Contact
  • Connection Options: 5-Pin Mini-Type Receptacle (J1 Wiring)
  • NOTE: Build to Order Cable Length

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected

Categories

Overview

UPC 61132029145
Item Long Description Corr-Resist Limit Switch
GTiN 00611320291452
Type Corr-Resist Limit Switch
Connector Type 5 Pin Mini Type (J1 Wiring)
Family Brand Name Allen Bradley
TC Connection Mini Quick Disconnect
Actuator Rotary Standard Trip,Lvr Type, Sprg Rtn, Std Trip
Number of Poles 2 Pole
Standard CCC,CSA,KC
Connection Type 5 Pin Mini Type (J1 Wiring),Mini Quick Disconnect
