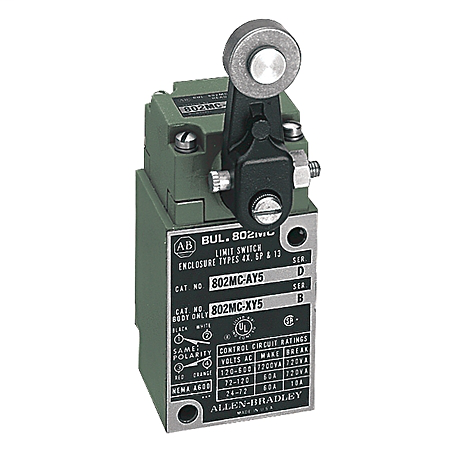

A-B 802MC-AZY16 Corr-Resist Limit S

Specifications

Switch Data

• Switch Components: Complete Switch
• Actuation Type: Lever Type, Spring Return, Standard Operating Torque
• Number of Circuits: 2-Circuit
• Mode of Operation: CW and CCW operation
• Travel to Operate Contacts (Max): 15°
• Torque to Operate Contacts (Max.): 0.34N.m (3lb in)
• Travel to Reset Contacts (Max.): 6°
• Maximum Travel: 86°

Modifications

• 24V DC Switch: 24V DC Model
• Indicating Lights: No Indicating Light(s)
• Connection Options: Extended Cable Length: 4.88m (16ft)
• NOTE: Build to Order Cable Length

Operating Lever Data

• Operating Lever: Operating Lever Not Selected
