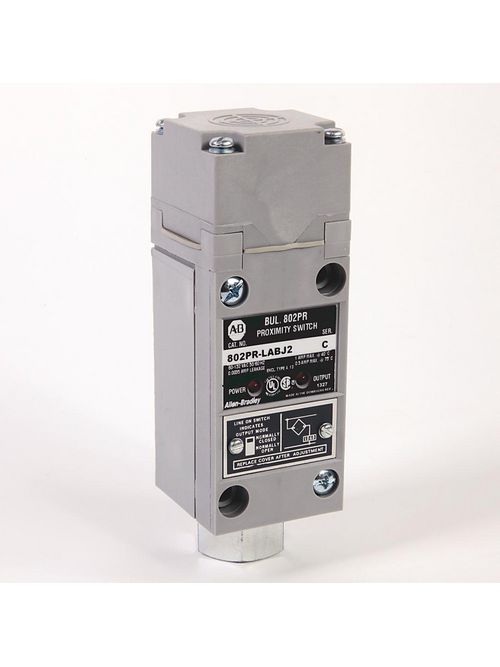

Allen-Bradley 802PR-LABJ2 2-Wire AC High Output 14 mm Distance Top Sensing Shielded NO/NC Proximity Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802PR-LABJ2
North Coast Part # 161463


  • False pulse protection
  • Hazardous location, high output and PLC interface models available
  • Applications include:
  • Side-sensing head can be rotated in 90° increments
  • Transient noise protection


Proximity Sensor Data

  • Proximity Sensor Type: 2-Wire AC High Output
  • Sensing Direction: Top Sensing Direction
  • Nominal Sensing Distance: 13mm
  • Shielding: Shielded
  • Output Configuration: N.O. or N.C. Selectable
  • Connection Type: Conduit - Coupler
  • Corrosion Resistant: No


UPC 66207324555
Item Long Description 802PR Inductive Proximity Sensor
GTiN 00662073245551
Type Limit Switch Style, Cuboid, Metallic Target
Material Polyester
Applications For 2-Wire AC High Output
Mounting Type Quasi-Flat
Connection Type Cable with Conduit Coupler Connector
Family Brand Name Allen Bradley
Output Normally Open
Blade Dimensions 117 mm L x 41 mm W x 42 mm H
Operating Frequency 20 Hz
Sensing Range 13 mm
Maximum Load Current 1000 mA
Sub Brand 802PR
Voltage 60-132 Volt
Standard CSA,CUL,KC,UL
