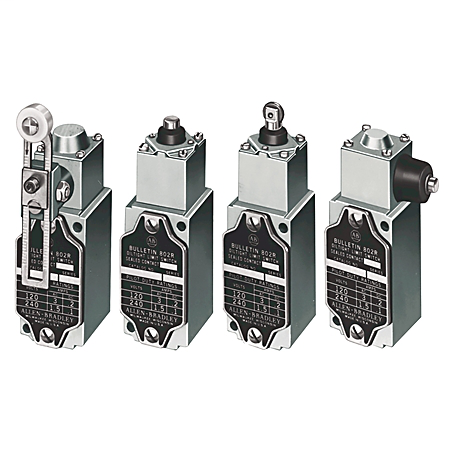

Allen-Bradley 802R-K1F Metal NEMA Sealed Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802R-K1F
North Coast Part # 66909


  • NEMA Enclosure Type 13
  • Multiple operator styles
  • Class I, groups B, C and D or Class II, groups E, F and G or Class III
  • High contact reliability in contaminated atmospheres


Switch Data

  • Actuation Type: Side Push Roller, Horizontal
  • Contact Type: N.O.
  • Travel to Operate Contacts (Nominal): 3.18mm (0.125in)
  • Torque to Operate Contacts (Max.): 20N (4.5lb)
  • Travel to Reset Contacts (Max.): 1.45mm (0.057in)
  • Maximum Travel: 5.54mm (0.218in)


  • Transparent Cover: No Modification

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected


UPC 66207319708
Item Long Description Metal NEMA Sealed Limit Switch
GTiN 00662073197089
Size Standard Non-Plug-In
Operating Temperature -29 C
Type NEMA Sealed Limit Switch
Applications Full Switch (Head And Body
Family Brand Name Allen Bradley
TC Connection Not Applicable,Conduit Entry
Actuator Horizontal Side Push Roller
Contact Configuration 1 Circuit
Contact Rating B600
Number of Poles 1 Pole
Enclosure Metal
Mounting Type 1/2" NPT Thread
Standard KC
Connection Type Not Applicable,Conduit Entry
