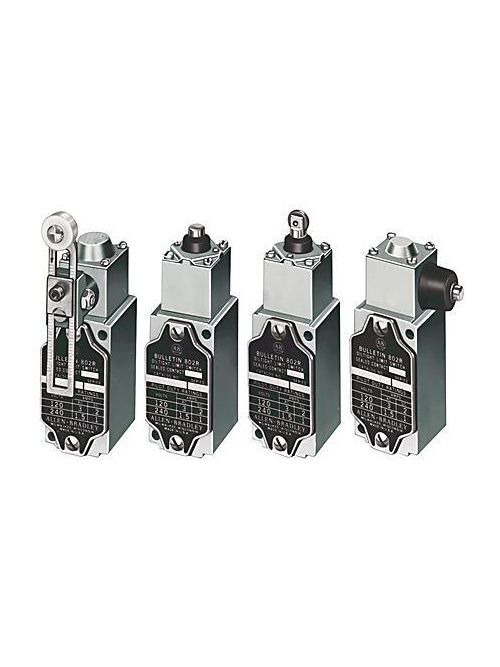

Allen-Bradley 802R-WS1C Metal NEMA Sealed Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 802R-WS1C
North Coast Part # 12246


  • Multiple operator styles
  • NEMA Enclosure Type 13
  • Class I, groups B, C and D or Class II, groups E, F and G or Class III
  • High contact reliability in contaminated atmospheres


Switch Data

  • Actuation Type: Wobble Stick, Wire
  • Contact Type: N.C.
  • Travel to Operate Contacts (Nominal): 11°
  • Torque to Operate Contacts (Max.): 0.51N-m (4.5lb in)
  • Travel to Reset Contacts (Max.): 5°
  • Maximum Travel: 11°


  • Transparent Cover: No Modification

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected


UPC 66207319713
GTiN 00662073197133
Size Standard Non-Plug-In
Operating Temperature -18 C
Type NEMA Sealed, Standard Non-Plug-In
Applications Full Switch (Head And Body
Family Brand Name Allen Bradley
TC Connection Conduit Entry
Actuator Wobble Stick
Contact Configuration 1 NC
Contact Rating B600
Number of Poles 1 Pole
Enclosure Metal
Material Metal, Steel Roller
Mounting Type 1/2 in NPT Thread
Temperature Rating -18 to 54 C
Number of Circuits 1
Action Snap Acting, Low Energy Contacts
Standard KC
Connection Type Not Applicable,Conduit Entry
